Description
Brand - ZEN
Item Number - ST202 ZEN
Category - Stainless Steel Pillow Blocks (ST)

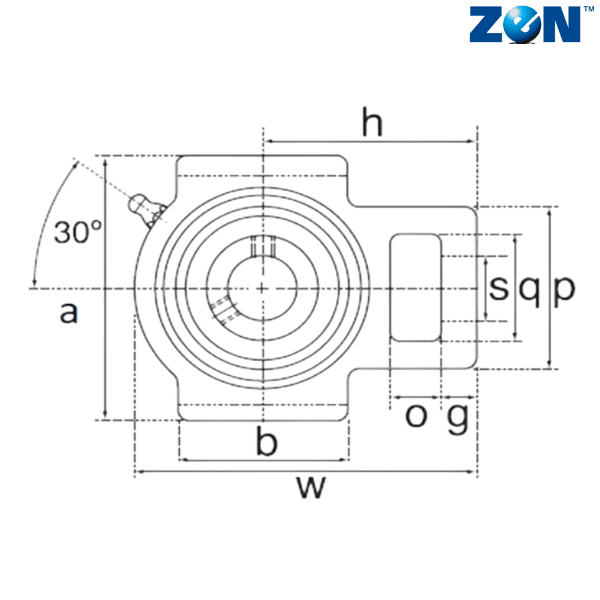

Inner Diameter (d) mm - 15
o (mm) - 16
g (mm) - 10
p (mm) - 51
q (mm) - 32
s (mm) - 19
b (mm) - 51
k (mm) - 12
e (mm) - 76
a (mm) - 89
w (mm) - 97
j (mm) - 32
l (mm) - 24
h (mm) - 62

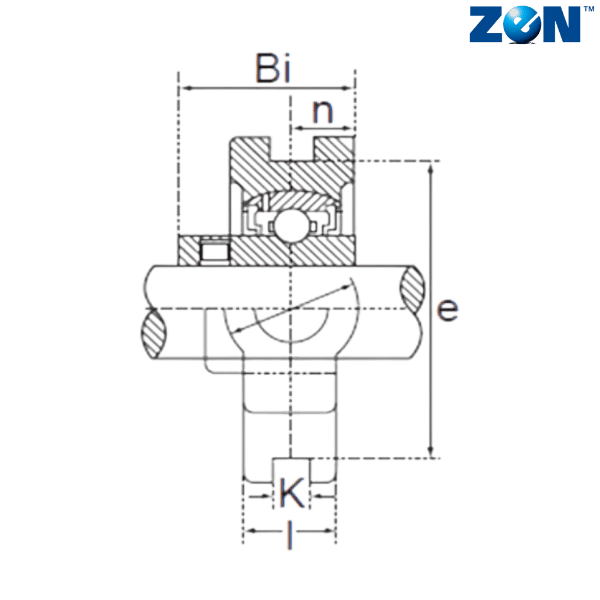

Bi (mm) - 34.1
n (mm) - 14.3
Weight (kg) - 0.73
Bearing - SUC202

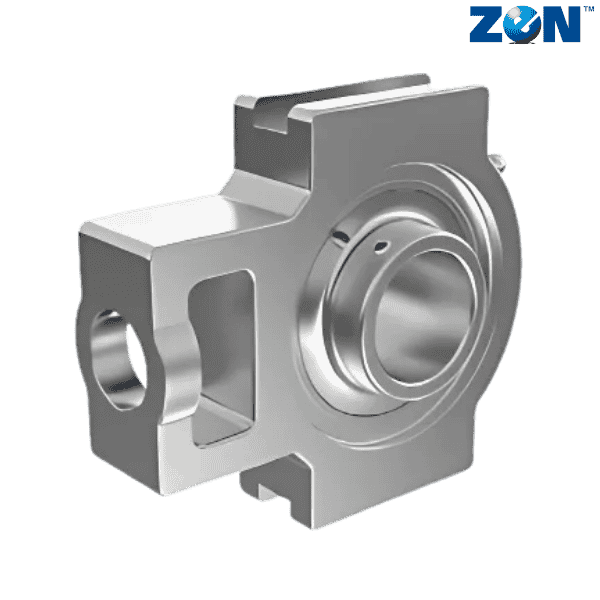

** Images are for representation purposes only
