Description
Brand - ZEN
Item Number - ST201 ZEN
Category - Stainless Steel Pillow Blocks (ST)

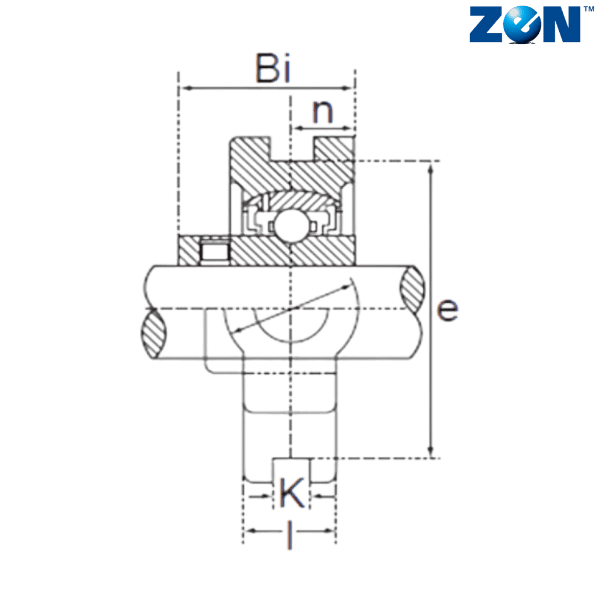

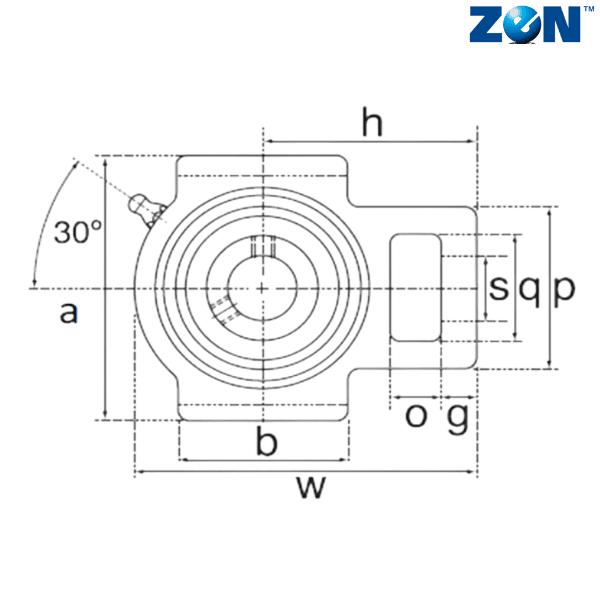

Inner Diameter (d) mm - 12
o (mm) - 16
g (mm) - 10
p (mm) - 51
q (mm) - 32
s (mm) - 19
b (mm) - 51
k (mm) - 12
e (mm) - 76
a (mm) - 89
w (mm) - 94
j (mm) - 32
l (mm) - 21
h (mm) - 61
Bi (mm) - 31
n (mm) - 12.7
Weight (kg) - 0.73
Bearing - SUC201
** Images are for representation purposes only
