Description
Brand - ZEN
Item Number - SSB210 ZEN
Category - Stainless Steel Inserts (SSB)
Inner Diameter (d) mm - 50
Outer Diameter (D) mm - 90
Minimum Width (B1) mm - 20
Maximum Width (B2) mm - 43.5
Dynamic Load Rating (N) - 30010
Static Load Rating (N) - 22530
Weight (kg) - 0.95
Outer Ring Material - AISI420
Inner Ring Material - AISI420
Ball Material - AISI420

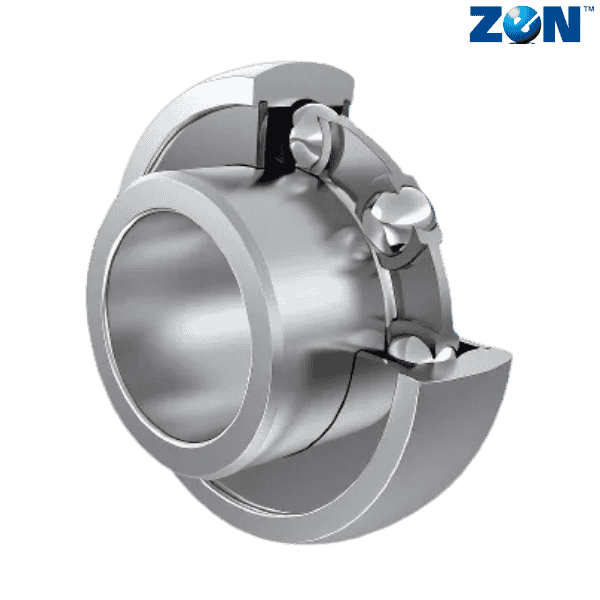

** Images are for representation purposes only
