Description
Brand - ZEN
Item Number - SSB209 ZEN
Category - Stainless Steel Inserts (SSB)
Inner Diameter (d) mm - 45
Outer Diameter (D) mm - 85
Minimum Width (B1) mm - 19
Maximum Width (B2) mm - 41.2
Dynamic Load Rating (N) - 26440
Static Load Rating (N) - 19560
Weight (kg) - 0.8
Outer Ring Material - AISI420
Inner Ring Material - AISI420
Ball Material - AISI420

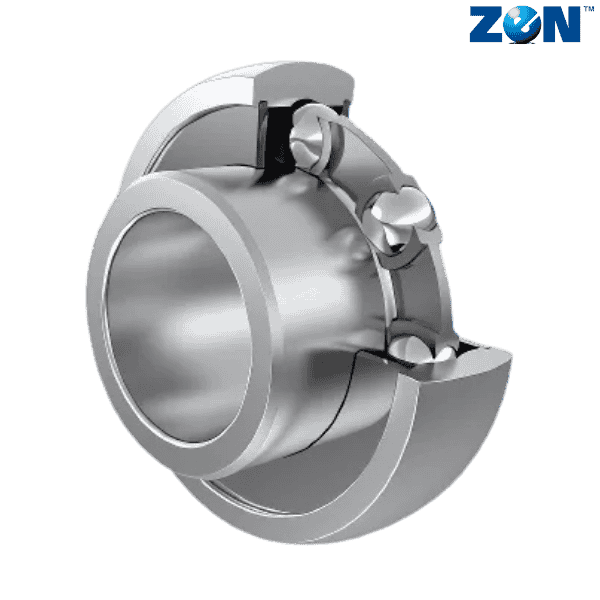

** Images are for representation purposes only
