Description
Brand - ZEN
Item Number - SSB208 ZEN
Category - Stainless Steel Inserts (SSB)
Inner Diameter (d) mm - 40
Outer Diameter (D) mm - 80
Minimum Width (B1) mm - 18
Maximum Width (B2) mm - 34
Dynamic Load Rating (N) - 23550
Static Load Rating (N) - 13600
Weight (kg) - 0.58
Outer Ring Material - AISI420
Inner Ring Material - AISI420
Ball Material - AISI420

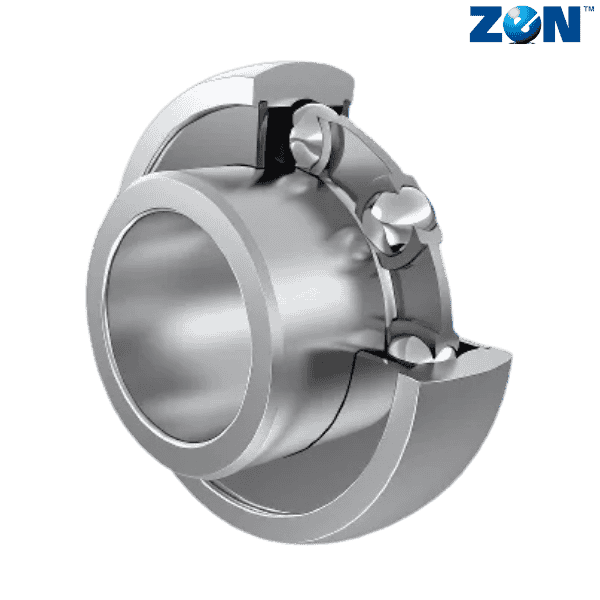

** Images are for representation purposes only
