Description
Brand - ZEN
Item Number - SSB206 ZEN
Category - Stainless Steel Inserts (SSB)
Inner Diameter (d) mm - 30
Outer Diameter (D) mm - 62
Minimum Width (B1) mm - 16
Maximum Width (B2) mm - 30
Dynamic Load Rating (N) - 15730
Static Load Rating (N) - 8640
Weight (kg) - 0.25
Outer Ring Material - AISI420
Inner Ring Material - AISI420
Ball Material - AISI420

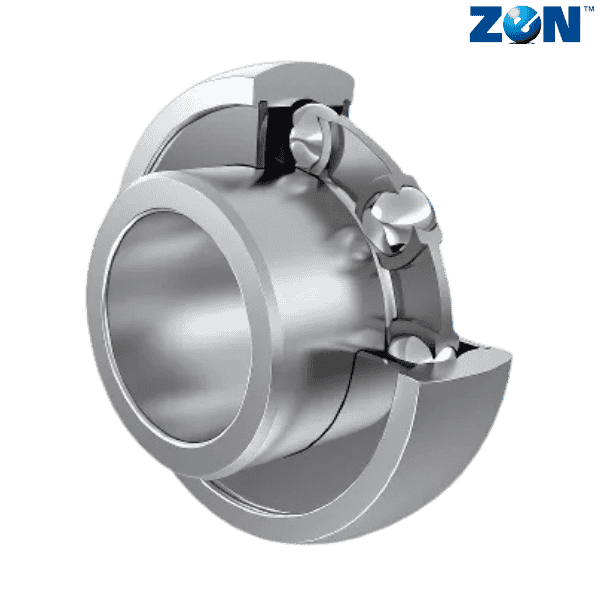

** Images are for representation purposes only
