Description
Brand - ZEN
Item Number - SSB205 ZEN
Category - Stainless Steel Inserts (SSB)
Inner Diameter (d) mm - 25
Outer Diameter (D) mm - 52
Minimum Width (B1) mm - 15
Maximum Width (B2) mm - 27
Dynamic Load Rating (N) - 11310
Static Load Rating (N) - 5970
Weight (kg) - 0.17
Outer Ring Material - AISI420
Inner Ring Material - AISI420
Ball Material - AISI420

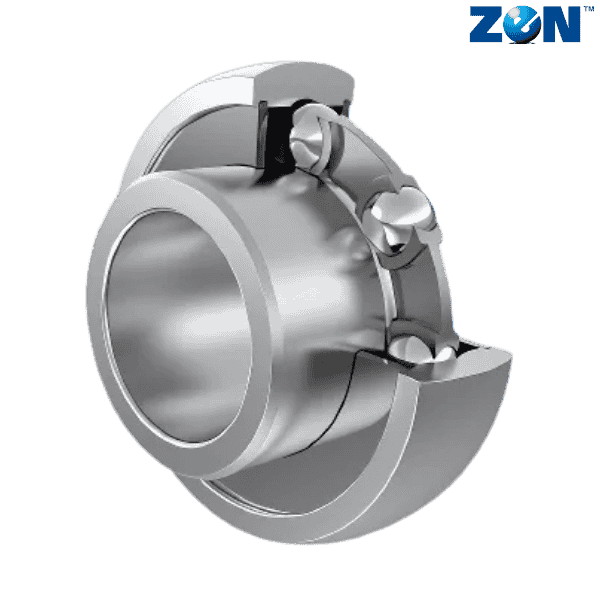

** Images are for representation purposes only
