Description
Brand - ZEN
Item Number - SSB204 ZEN
Category - Stainless Steel Inserts (SSB)
Inner Diameter (d) mm - 20
Outer Diameter (D) mm - 47
Minimum Width (B1) mm - 14
Maximum Width (B2) mm - 25
Dynamic Load Rating (N) - 10370
Static Load Rating (N) - 5040
Weight (kg) - 0.15
Outer Ring Material - AISI420
Inner Ring Material - AISI420
Ball Material - AISI420

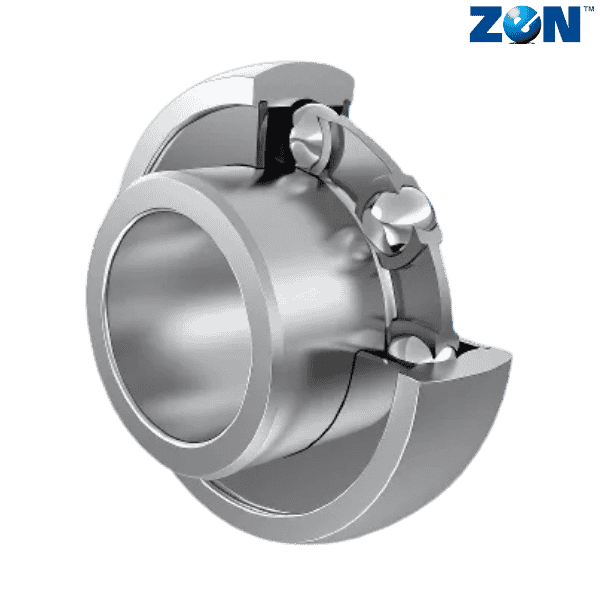

** Images are for representation purposes only
