Description
Brand - ZEN
Item Number - SSB202 ZEN
Category - Stainless Steel Inserts (SSB)
Inner Diameter (d) mm - 15
Outer Diameter (D) mm - 40
Minimum Width (B1) mm - 12
Maximum Width (B2) mm - 22
Dynamic Load Rating (N) - 7820
Static Load Rating (N) - 3580
Weight (kg) - 0.22
Outer Ring Material - AISI420
Inner Ring Material - AISI420
Ball Material - AISI420

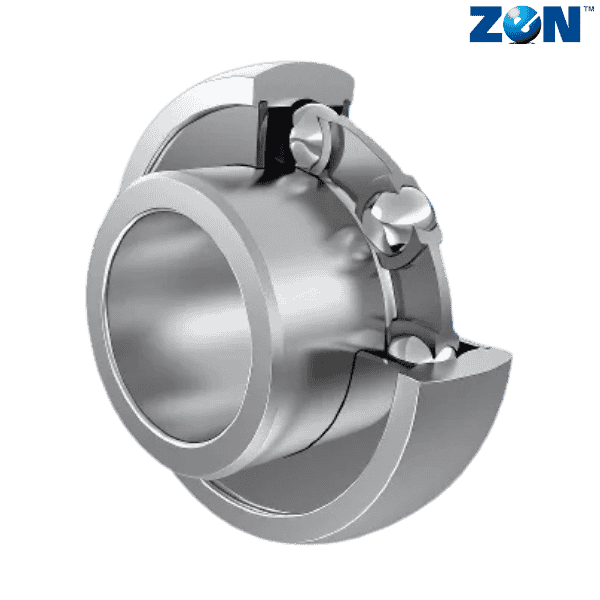

** Images are for representation purposes only
