Description
Brand - UNIBAL
Item Number - SSA 14 UNIBAL
Also Known As - SSA14
Category - Spherical Bearings with Maintenance in Standard Series SSA

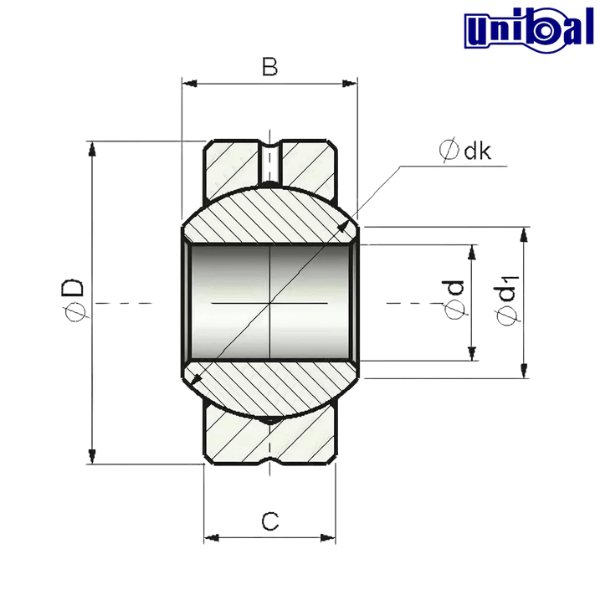

Bore Diameter with Tolerance H7 (d) mm - 14
Width (B) mm - 19 (0 or -0.05)
Width of the Cage or Mount (C) mm - 13.5 (± 0.2)
Diameter of the Sphere (dk) mm - 25.40
Diameter of Flat (d1) mm - 16.86
Outer Diameter with Tolerance h6 (D) mm - 34
a° - 16
Basic Static Loading (C0) daN - 10490
Weight (kg) - 0.083

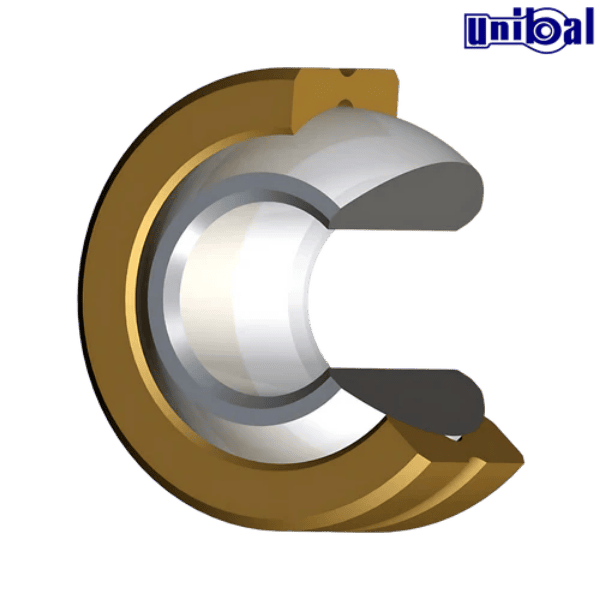

** Images are for representation purposes only
