Description
Brand - RBC HEIM
Item Number - SS25 RBC HEIM
Category - Spherical Bearing (Metric Precision Series)

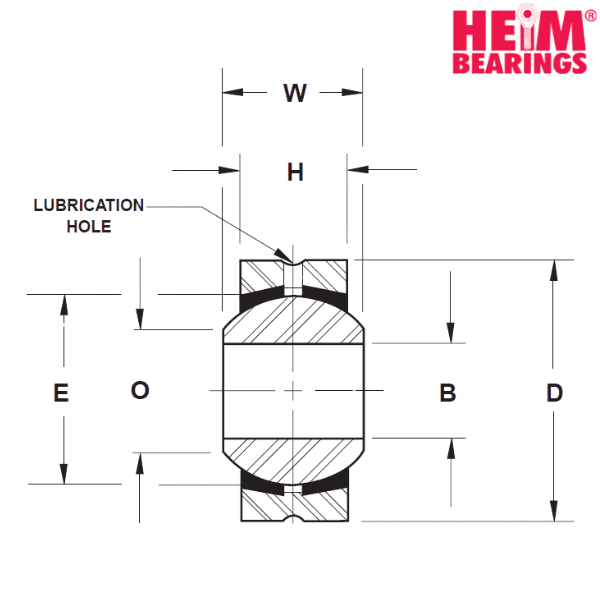

Principal Dimensions & Load Ratings (Metric) :
Bore Diameter (B) - 25 (H7) mm
Outside Diameter (D) - 56 (h6) mm
Ball Width (W) - 31 (+.000 to - .130) mm
Housing Width (H) - 22 (+.000 to - .130) mm
Ball Diameter (E) - 42.85 mm
Ball Flat Diameter (O) - 29.6 mm
Maximum Static Radial Load - 11080 daN
Approximate Weight - 0.36 kg
Other salient points to be noted :
• Outer Ring = Carbon steel, with protective coating for corrosion resistance.
• Ball = Chrome steel, heat treated.
• Inserts = Brass.

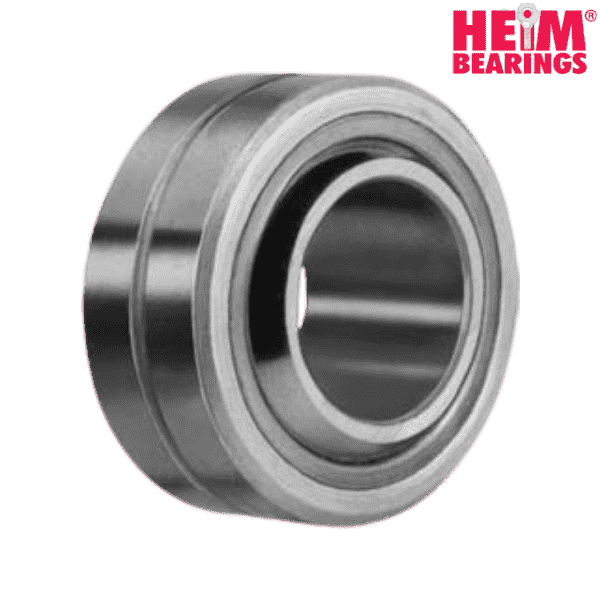

♦ ♦ Images are for representation purposes only
Item Number - SS25 RBC HEIM
Category - Spherical Bearing (Metric Precision Series)
Principal Dimensions & Load Ratings (Metric) :
Bore Diameter (B) - 25 (H7) mm
Outside Diameter (D) - 56 (h6) mm
Ball Width (W) - 31 (+.000 to - .130) mm
Housing Width (H) - 22 (+.000 to - .130) mm
Ball Diameter (E) - 42.85 mm
Ball Flat Diameter (O) - 29.6 mm
Maximum Static Radial Load - 11080 daN
Approximate Weight - 0.36 kg
Other salient points to be noted :
• Outer Ring = Carbon steel, with protective coating for corrosion resistance.
• Ball = Chrome steel, heat treated.
• Inserts = Brass.
♦ ♦ Images are for representation purposes only
