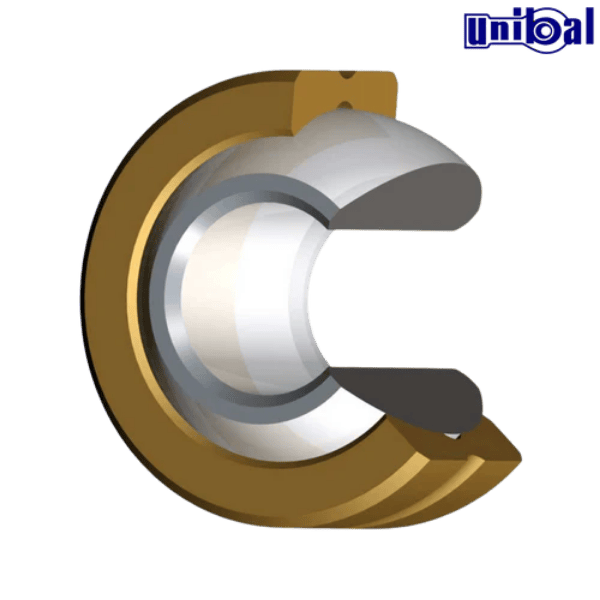

SS 2 .45 UNIBAL


Country of Origin: SWITZERLAND
Price:
Sale price₹ 100.00 Regular price₹ 200.00

Download data sheet

Description

Brand - UNIBAL
Item Number - SS 2 .45 UNIBAL
Also Known As - SS2.45
Category - Spherical Bearings with Maintenance in Stainless Steel Series SS

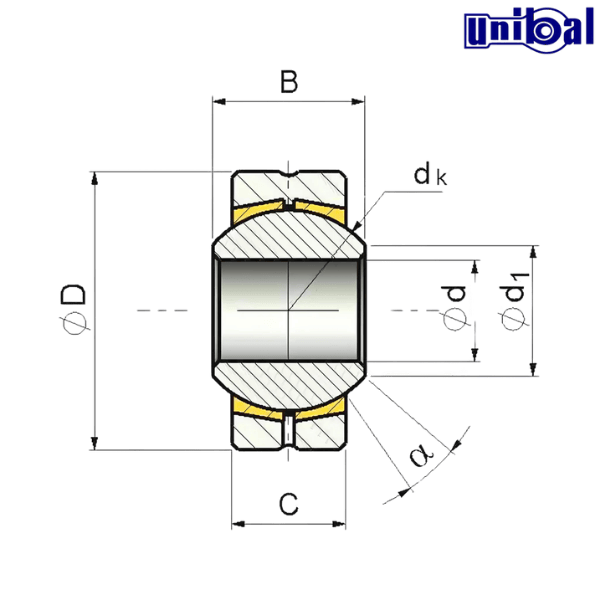

Bore Diameter with Tolerance H7 (d) mm - 2
Width (B) mm - 4.8 (0 or -0.05)
Width of the Cage or Mount (C) mm - 3.6 (± 0.2)
Diameter of the Sphere (dk) mm - 6
Diameter of Flat (d1) mm - 3.6
Outer Diameter with Tolerance h6 (D) mm - 9
a° - 16
Basic Static Loading (C0) daN - 370
Weight (kg) - 0.003

Suffix Description :
.45-Stainless Steel

** Images are for representation purposes only
