Description

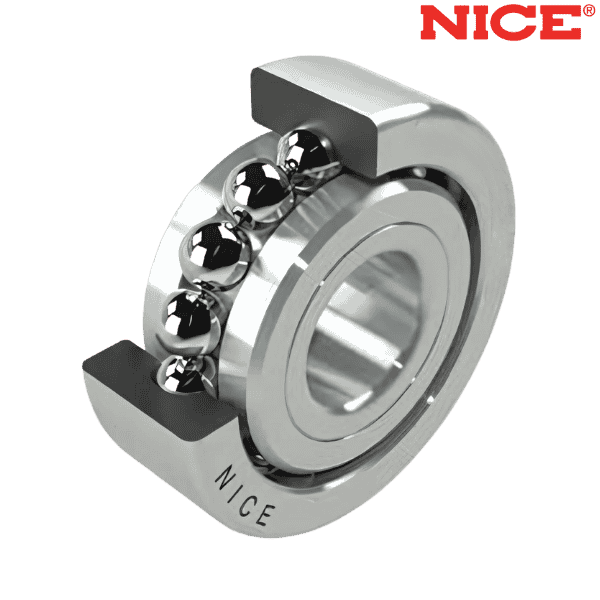

Brand - RBC NICE
Item Number - SRM085609 RBC NICE
Category - Precision Machined Single Row Ball Bearings
Equivalent Part Number in The General (General Bearing Corporation, GBC) - 22801-01

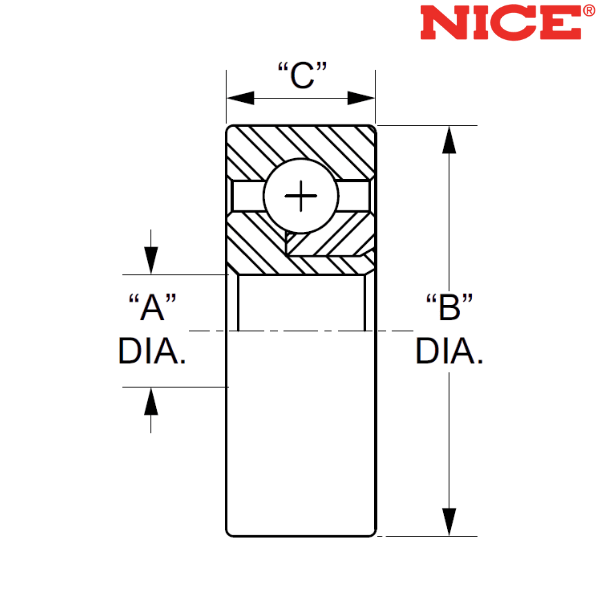

Principal Dimensions and Load Ratings (Imperial) :
Bore Diameter (A) - 0.500 (+0.005 to -0.000) inch
Outer Diameter (B) - 1.75 (+0.000 to -0.005) inch
Width (C) - 0.563 (+0.010 to - 0.010) inch
Load Rating - 1400 lbf
Weight - 0.279 lbs
Principal Dimensions and Load Ratings (Metric) :
Weight - 0.1266 kg
Some features about this bearing
• Nominal Inch Dimensioned
• Precision Machined and Heat Treated for Long Life
• Zinc Plated for Corrosion Protection
• Full Complement Construction
• Designed for Light Loads and Speeds up to 1,200 RPM
♦♦ Images are for representation purposes only
Item Number - SRM085609 RBC NICE
Category - Precision Machined Single Row Ball Bearings
Equivalent Part Number in The General (General Bearing Corporation, GBC) - 22801-01
Principal Dimensions and Load Ratings (Imperial) :
Bore Diameter (A) - 0.500 (+0.005 to -0.000) inch
Outer Diameter (B) - 1.75 (+0.000 to -0.005) inch
Width (C) - 0.563 (+0.010 to - 0.010) inch
Load Rating - 1400 lbf
Weight - 0.279 lbs
Principal Dimensions and Load Ratings (Metric) :
Weight - 0.1266 kg
Some features about this bearing
• Nominal Inch Dimensioned
• Precision Machined and Heat Treated for Long Life
• Zinc Plated for Corrosion Protection
• Full Complement Construction
• Designed for Light Loads and Speeds up to 1,200 RPM
♦♦ Images are for representation purposes only
