Description
Brand - RBC
Item Number - SRF 75 RBC
Also Known As - SRF75
Matching Inner Rings - IR 7355, IR 7355 D
Category - Caged Roller Followers (without Seals)

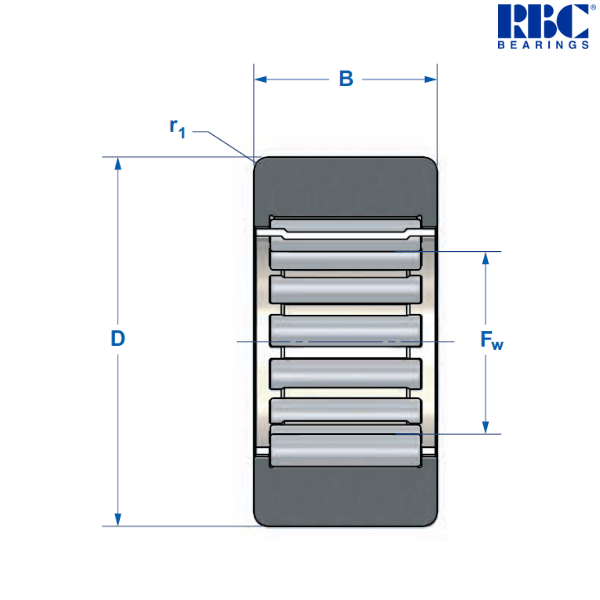

Principal Dimensions & Load Ratings (Imperial) :
Maximum Outside Diameter (D) - 3.75 inch
Minimum Outside Diameter (D) - 3.749 inch
Roller Width (B) - 1.245 inch
Nominal Inside Diameter (Fw) - 2 inch
Minimum Inside Diameter (Fw) - 2.0011 inch
Maximum Inside Diameter (Fw) - 2.0021 inch
Corner Radius (r1) - 0.1 inch
Approximate Weight - 2.59 lbs
Dynamic Capacity (C) - 10600 lbf
Static Capacity (C0) - 25800 lbf *
Track Capacity @ 40 Rc - 12100 lbf
Critical Angle - 24.9 deg **
Speed Limit (grease) - 2700 rpm ***
Maximum Recommended Shaft Diameter (without Inner Ring) - 2 inch
Minimum Recommended Shaft Diameter (without Inner Ring) - 1.9994 inch
Principal Dimensions & Load Ratings (Metric) :
Approximate Weight - 1.175 kg
Other salient points to be noted :
* Bearing Static Capacity provided for comparison only
** For oscillatory application with angle of oscillation less than critical angle, consult RBC engineering department for revised fatigue calculation
*** Speed limit of sealed roller followers is determined by maximum seal surface speed. For roller followers without seals, speed limit may be increased by 30% with oil lubrication

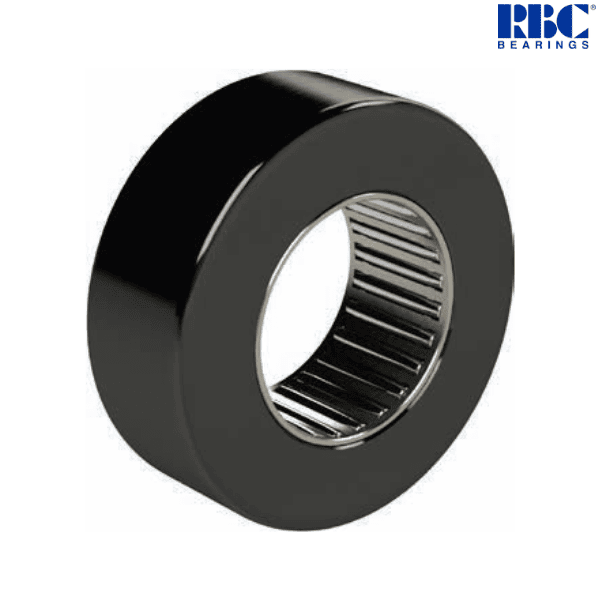

♦ ♦ Images are for representation purposes only
