Description

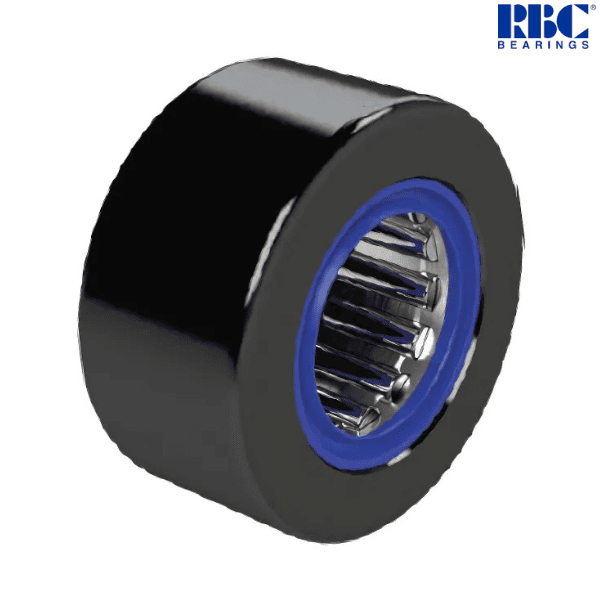

Brand - RBC
Item Number - SRF 50 SS RBC
Also Known As - SRF50SS
Matching Inner Rings - IR 7254, IR 7254 D
Category - Caged Roller Followers (with Seals)

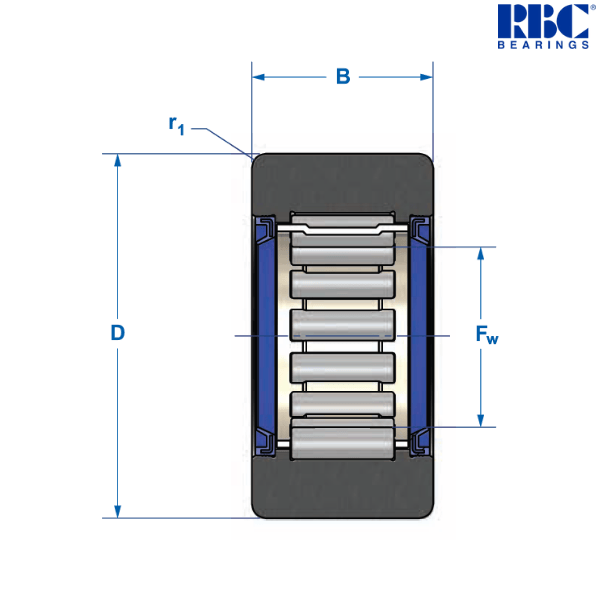

Principal Dimensions & Load Ratings (Imperial) :
Maximum Outside Diameter (D) - 2.5 inch
Minimum Outside Diameter (D) - 2.499 inch
Roller Width (B) - 0.995 inch
Nominal Inside Diameter (Fw) - 1.375 inch
Minimum Inside Diameter (Fw) - 1.376 inch
Maximum Inside Diameter (Fw) - 1.3769 inch
Corner Radius (r1) - 0.08 inch
Approximate Weight - 0.86 lbs
Dynamic Capacity (C) - 5100 lbf
Static Capacity (C0) - 8900 lbf *
Track Capacity @ 40 Rc - 6450 lbf
Critical Angle - 34.4 deg **
Speed Limit (grease) - 2800 rpm ***
Maximum Recommended Shaft Diameter (without Inner Ring) - 1.375 inch
Minimum Recommended Shaft Diameter (without Inner Ring) - 1.3745 inch
Principal Dimensions & Load Ratings (Metric) :
Approximate Weight - 0.39 kg
Other salient points to be noted :
* Bearing Static Capacity provided for comparison only
** For oscillatory application with angle of oscillation less than critical angle, consult RBC engineering department for revised fatigue calculation
*** Speed limit of sealed roller followers is determined by maximum seal surface speed. For roller followers without seals, speed limit may be increased by 30% with oil lubrication
♦ ♦ Images are for representation purposes only
