Description
Brand - RBC
Item Number - SRF 40 SS RBC
Also Known As - SRF40SS
Matching Inner Rings - IR 7194, IR 7194 C
Category - Caged Roller Followers (with Seals)

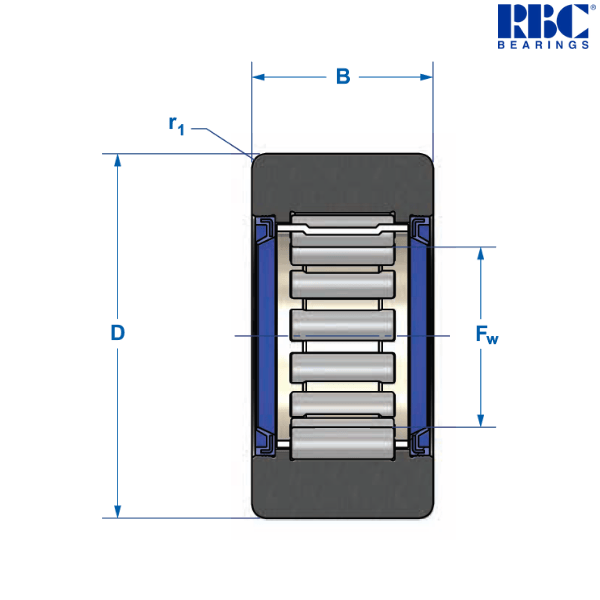

Principal Dimensions & Load Ratings (Imperial) :
Maximum Outside Diameter (D) - 2 inch
Minimum Outside Diameter (D) - 1.999 inch
Roller Width (B) - 0.995 inch
Nominal Inside Diameter (Fw) - 1 inch
Minimum Inside Diameter (Fw) - 1.0009 inch
Maximum Inside Diameter (Fw) - 1.0018 inch
Corner Radius (r1) - 0.08 inch
Approximate Weight - 0.56 lbs
Dynamic Capacity (C) - 5000 lbf
Static Capacity (C0) - 7500 lbf *
Track Capacity @ 40 Rc - 5200 lbf
Critical Angle - 41.8 deg **
Speed Limit (grease) - 3800 rpm ***
Maximum Recommended Shaft Diameter (without Inner Ring) - 1 inch
Minimum Recommended Shaft Diameter (without Inner Ring) - 0.9995 inch
Principal Dimensions & Load Ratings (Metric) :
Approximate Weight - 0.254 kg
Other salient points to be noted :
* Bearing Static Capacity provided for comparison only
** For oscillatory application with angle of oscillation less than critical angle, consult RBC engineering department for revised fatigue calculation
*** Speed limit of sealed roller followers is determined by maximum seal surface speed. For roller followers without seals, speed limit may be increased by 30% with oil lubrication

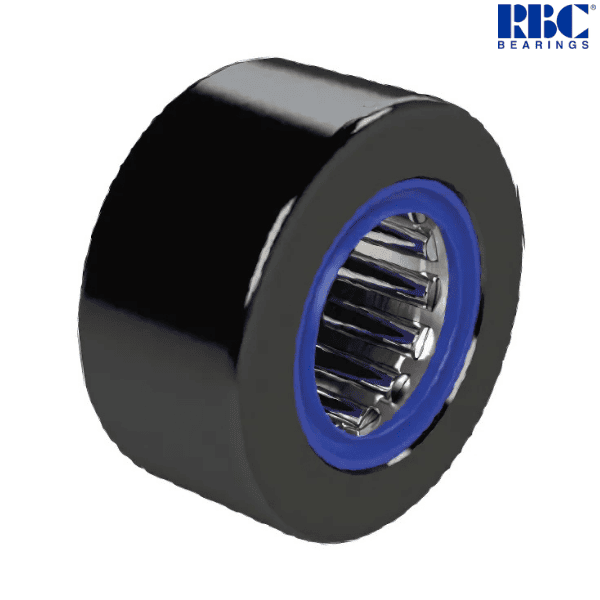

♦ ♦ Images are for representation purposes only
