Description
Brand - RBC
Item Number - SRF 40 RBC
Also Known As - SRF40
Matching Inner Rings - IR 7194, IR 7194 C
Category - Caged Roller Followers (without Seals)

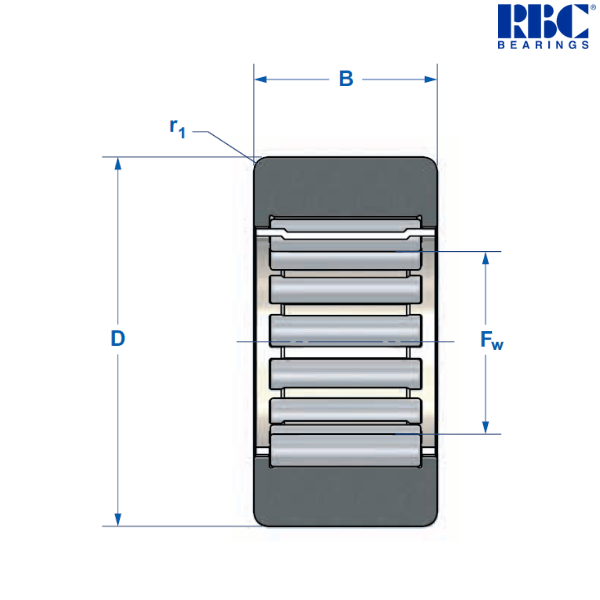

Principal Dimensions & Load Ratings (Imperial) :
Maximum Outside Diameter (D) - 2 inch
Minimum Outside Diameter (D) - 1.999 inch
Roller Width (B) - 0.995 inch
Nominal Inside Diameter (Fw) - 1 inch
Minimum Inside Diameter (Fw) - 1.0009 inch
Maximum Inside Diameter (Fw) - 1.0018 inch
Corner Radius (r1) - 0.08 inch
Approximate Weight - 0.59 lbs
Dynamic Capacity (C) - 6900 lbf
Static Capacity (C0) - 11300 lbf *
Track Capacity @ 40 Rc - 5200 lbf
Critical Angle - 41.8 deg **
Speed Limit (grease) - 5400 rpm ***
Maximum Recommended Shaft Diameter (without Inner Ring) - 1 inch
Minimum Recommended Shaft Diameter (without Inner Ring) - 0.9995 inch
Principal Dimensions & Load Ratings (Metric) :
Approximate Weight - 0.268 kg
Other salient points to be noted :
* Bearing Static Capacity provided for comparison only
** For oscillatory application with angle of oscillation less than critical angle, consult RBC engineering department for revised fatigue calculation
*** Speed limit of sealed roller followers is determined by maximum seal surface speed. For roller followers without seals, speed limit may be increased by 30% with oil lubrication

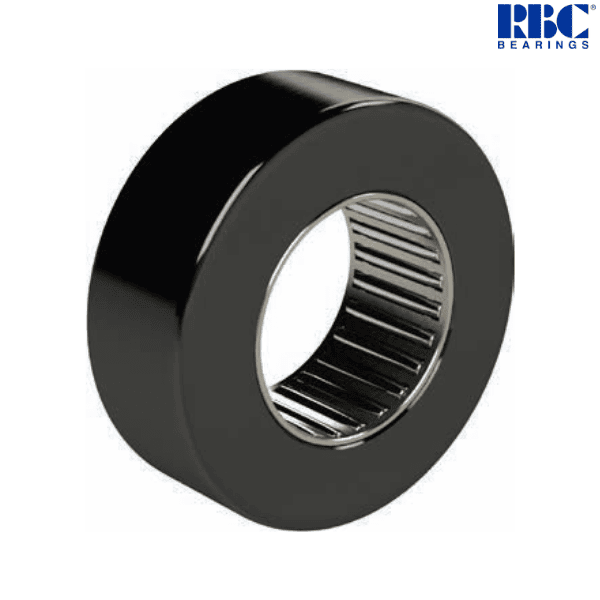

♦ ♦ Images are for representation purposes only
