Description
Brand - RBC
Item Number - SRF 35 SS RBC
Also Known As - SRF35SS
Matching Inner Rings - IR 7173, IR 7173 C
Category - Caged Roller Followers (with Seals)

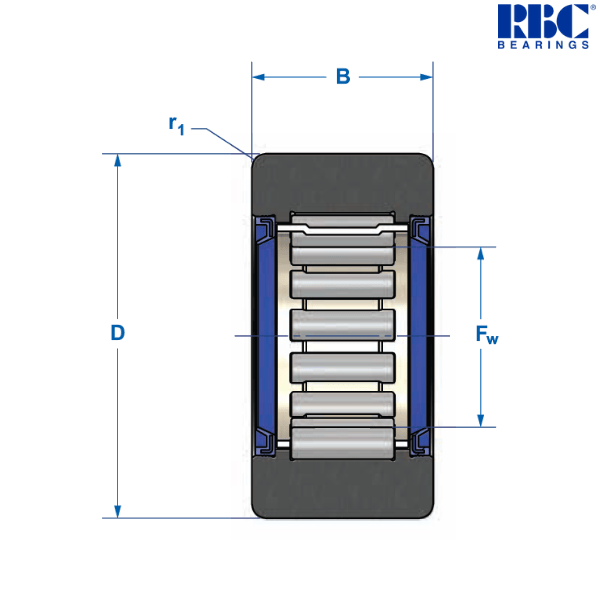

Principal Dimensions & Load Ratings (Imperial) :
Maximum Outside Diameter (D) - 1.75 inch
Minimum Outside Diameter (D) - 1.749 inch
Roller Width (B) - 0.745 inch
Nominal Inside Diameter (Fw) - 0.875 inch
Minimum Inside Diameter (Fw) - 0.8759 inch
Maximum Inside Diameter (Fw) - 0.8768 inch
Corner Radius (r1) - 0.06 inch
Approximate Weight - 0.33 lbs
Dynamic Capacity (C) - 2400 lbf
Static Capacity (C0) - 3000 lbf *
Track Capacity @ 40 Rc - 3400 lbf
Critical Angle - 48.1 deg **
Speed Limit (grease) - 4400 rpm ***
Maximum Recommended Shaft Diameter (without Inner Ring) - 0.875 inch
Minimum Recommended Shaft Diameter (without Inner Ring) - 0.8746 inch
Principal Dimensions & Load Ratings (Metric) :
Approximate Weight - 0.15 kg
Other salient points to be noted :
* Bearing Static Capacity provided for comparison only
** For oscillatory application with angle of oscillation less than critical angle, consult RBC engineering department for revised fatigue calculation
*** Speed limit of sealed roller followers is determined by maximum seal surface speed. For roller followers without seals, speed limit may be increased by 30% with oil lubrication

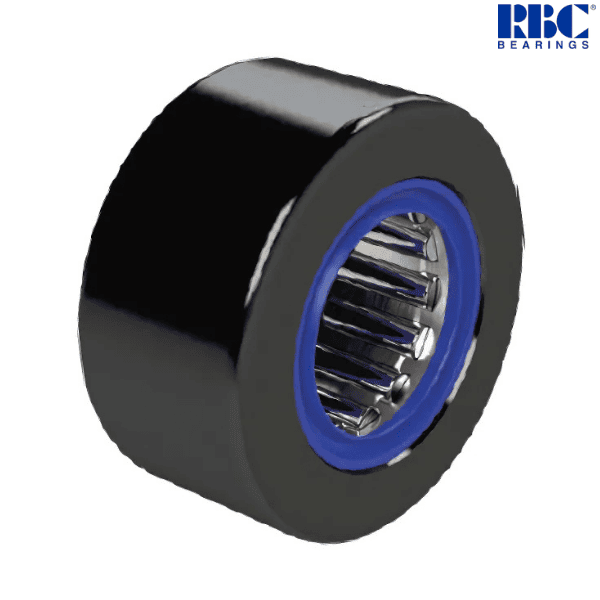

♦ ♦ Images are for representation purposes only
