Description

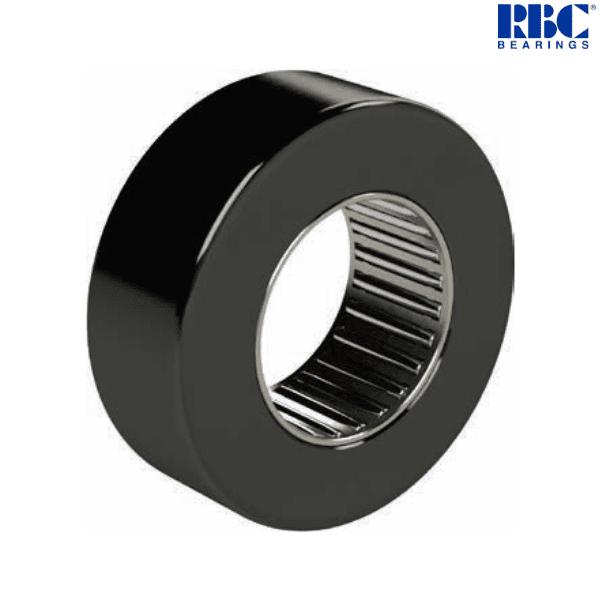

Brand - RBC
Item Number - SRF 30 RBC
Also Known As - SRF30
Matching Inner Rings - IR 7153, IR 7153 C
Category - Caged Roller Followers (without Seals)

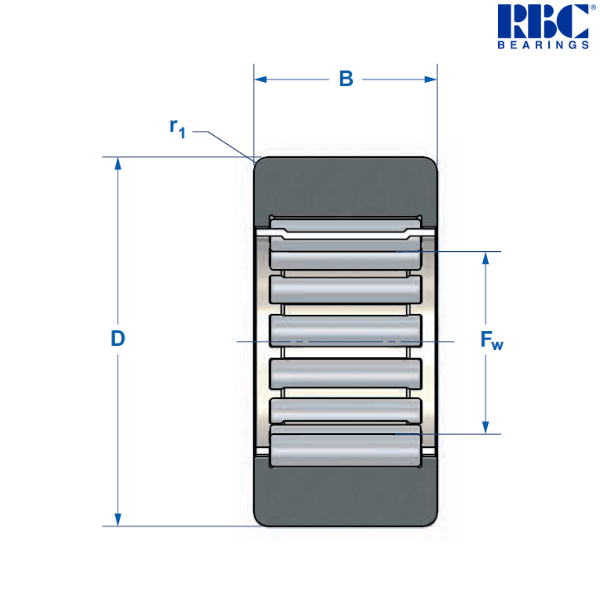

Principal Dimensions & Load Ratings (Imperial) :
Maximum Outside Diameter (D) - 1.5 inch
Minimum Outside Diameter (D) - 1.499 inch
Roller Width (B) - 0.745 inch
Nominal Inside Diameter (Fw) - 0.75 inch
Minimum Inside Diameter (Fw) - 0.7509 inch
Maximum Inside Diameter (Fw) - 0.7518 inch
Corner Radius (r1) - 0.06 inch
Approximate Weight - 0.23 lbs
Dynamic Capacity (C) - 4400 lbf
Static Capacity (C0) - 5900 lbf *
Track Capacity @ 40 Rc - 2900 lbf
Critical Angle - 50.5 deg **
Speed Limit (grease) - 7200 rpm ***
Maximum Recommended Shaft Diameter (without Inner Ring) - 0.75 inch
Minimum Recommended Shaft Diameter (without Inner Ring) - 0.7496 inch
Principal Dimensions & Load Ratings (Metric) :
Approximate Weight - 0.104 kg
Other salient points to be noted :
* Bearing Static Capacity provided for comparison only
** For oscillatory application with angle of oscillation less than critical angle, consult RBC engineering department for revised fatigue calculation
*** Speed limit of sealed roller followers is determined by maximum seal surface speed. For roller followers without seals, speed limit may be increased by 30% with oil lubrication
♦ ♦ Images are for representation purposes only
