SRF 25 RBC

RBC

Download Data Sheet

Country Of Origin: USA

Variant

Share this product

Brand - RBC
Item Number - SRF 25 RBC
Also Known As - SRF25
Category - Caged Roller Followers (without Seals)

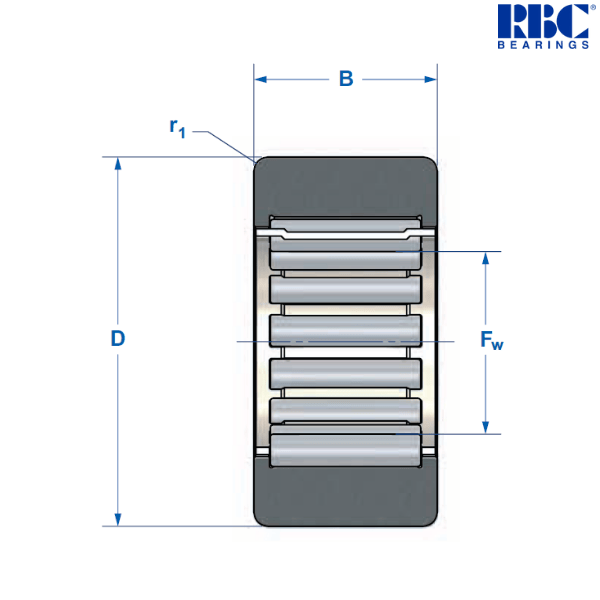

Principal Dimensions & Load Ratings (Imperial) :
Maximum Outside Diameter (D) - 1.25 inch
Minimum Outside Diameter (D) - 1.249 inch
Roller Width (B) - 0.62 inch
Nominal Inside Diameter (Fw) - 0.625 inch
Minimum Inside Diameter (Fw) - 0.6258 inch
Maximum Inside Diameter (Fw) - 0.6267 inch
Corner Radius (r1) - 0.06 inch
Approximate Weight - 0.13 lbs
Dynamic Capacity (C) - 2700 lbf
Static Capacity (C0) - 3300 lbf *
Track Capacity @ 40 Rc - 1950 lbf
Critical Angle - 60.1 deg **
Speed Limit (grease) - 8700 rpm ***
Maximum Recommended Shaft Diameter (without Inner Ring) - 0.625 inch
Minimum Recommended Shaft Diameter (without Inner Ring) - 0.6246 inch

Principal Dimensions & Load Ratings (Metric) :
Approximate Weight - 0.059 kg

Other salient points to be noted :
* Bearing Static Capacity provided for comparison only
** For oscillatory application with angle of oscillation less than critical angle, consult RBC engineering department for revised fatigue calculation
*** Speed limit of sealed roller followers is determined by maximum seal surface speed. For roller followers without seals, speed limit may be increased by 30% with oil lubrication

♦ ♦ Images are for representation purposes only
