SRF 20 SS RBC

RBC

Download Data Sheet

Country Of Origin: USA

Variant

Share this product

Brand - RBC
Item Number - SRF 20 SS RBC
Also Known As - SRF20SS
Category - Caged Roller Followers (with Seals)

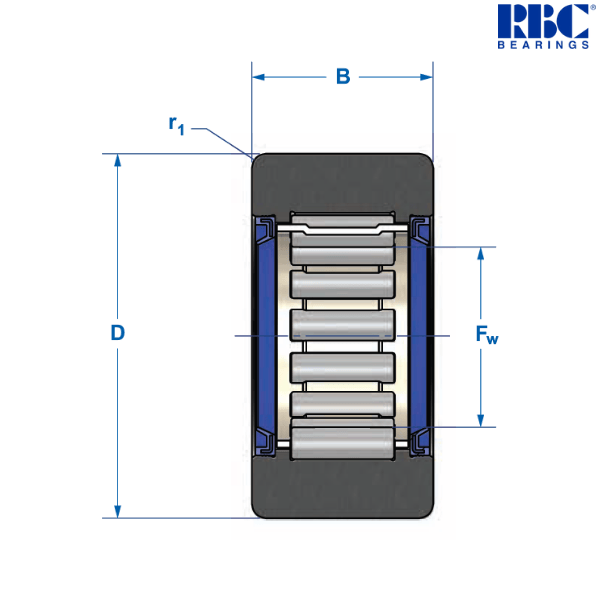

Principal Dimensions & Load Ratings (Imperial) :
Maximum Outside Diameter (D) - 1 inch
Minimum Outside Diameter (D) - 0.999 inch
Roller Width (B) - 0.62 inch
Nominal Inside Diameter (Fw) - 0.5 inch
Minimum Inside Diameter (Fw) - 0.5005 inch
Maximum Inside Diameter (Fw) - 0.5014 inch
Corner Radius (r1) - 0.04 inch
Approximate Weight - 0.08 lbs
Dynamic Capacity (C) - 1200 lbf
Static Capacity (C0) - 1300 lbf *
Track Capacity @ 40 Rc - 1650 lbf
Critical Angle - 60 deg **
Speed Limit (grease) - 7600 rpm ***
Maximum Recommended Shaft Diameter (without Inner Ring) - 0.5 inch
Minimum Recommended Shaft Diameter (without Inner Ring) - 0.4996 inch

Principal Dimensions & Load Ratings (Metric) :
Approximate Weight - 0.036 kg

Other salient points to be noted :
* Bearing Static Capacity provided for comparison only
** For oscillatory application with angle of oscillation less than critical angle, consult RBC engineering department for revised fatigue calculation
*** Speed limit of sealed roller followers is determined by maximum seal surface speed. For roller followers without seals, speed limit may be increased by 30% with oil lubrication

♦ ♦ Images are for representation purposes only
