Description
Brand - ZEN
Item Number - SR8 ZEN

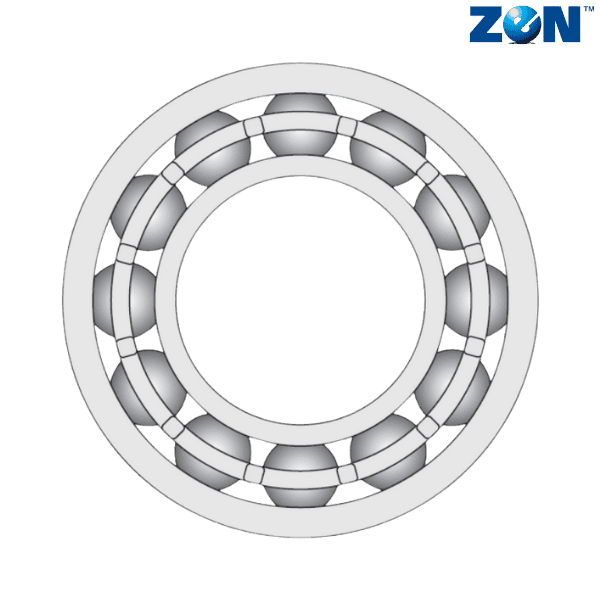

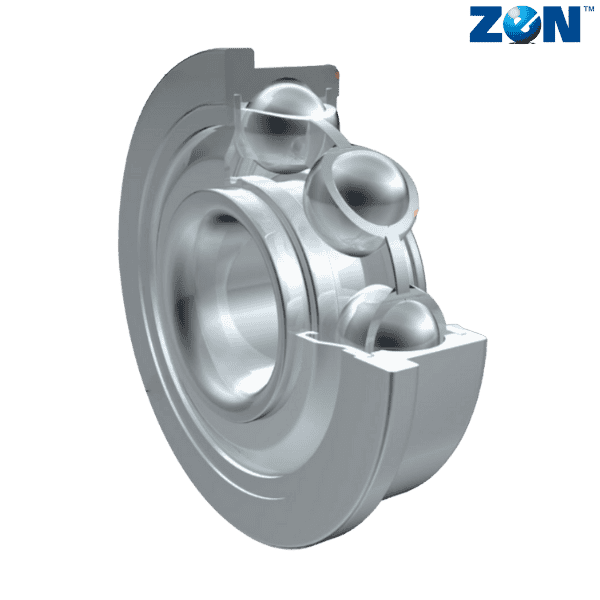

Category - Stainless Steel Deep Groove Ball bearing

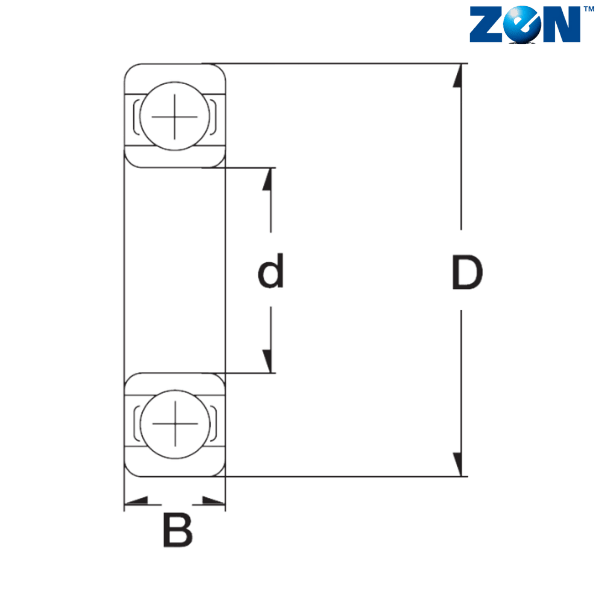

Inner Diameter (d) mm - 12.700
Inner Diameter (d) inch - 0.500
Outer Diameter (D) mm - 28.575
Outer Diameter (D) inch - 1.125
Width (B) mm - 6.350
Width (B) inch - 0.2500
Dynamic Load Rating (N) - 5108
Static Load Rating (N) - 2413
Limiting Speed (Grease) - 27
Limiting Speed (Oil) - 32
Weight (kg) - 0.025
Notes :
S - Stainless Steel
R - Inch
** Images are for representation purposes only
