Description
Brand - ZEN
Item Number - SR1634-2Z ZEN

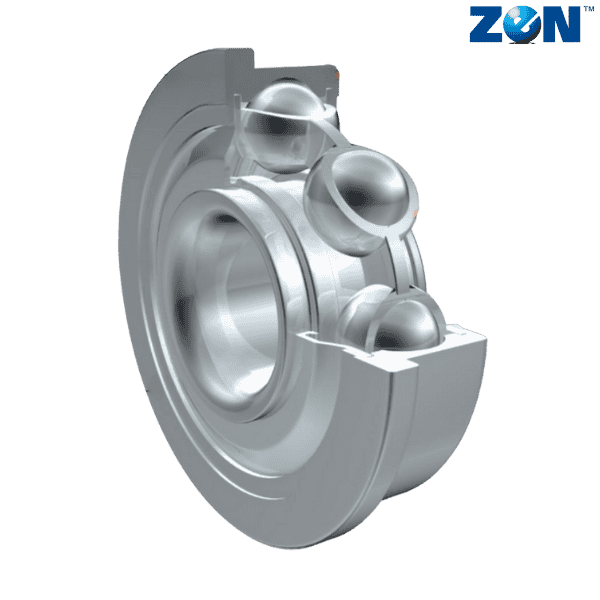

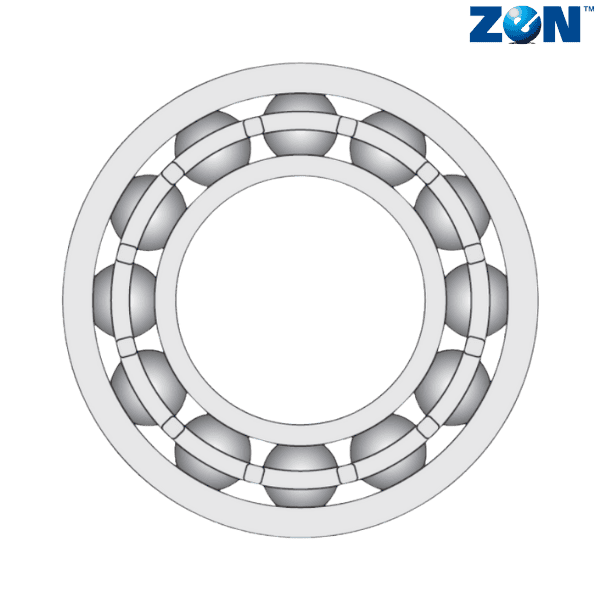

Category - Stainless Steel Deep Groove Ball bearing

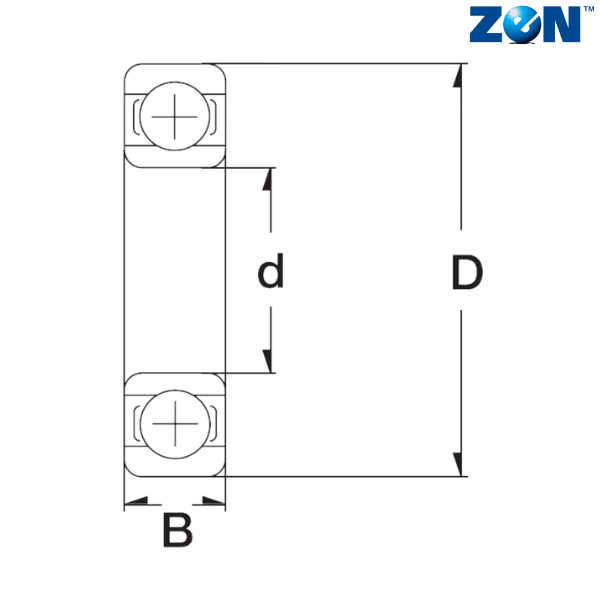

Inner Diameter (d) mm - 19.050
Inner Diameter (d) inch - 0.750
Outer Diameter (D) mm - 25.400
Outer Diameter (D) inch - 1.000
Width (B) mm - 3.967
Width (B) inch - 0.1562
Dynamic Load Rating (N) - 10300
Static Load Rating (N) - 7000
Limiting Speed (Grease) - 17
Limiting Speed (Oil) - 21
Weight (kg) - 0.009
Notes :
S - Stainless Steel
R - Inch
2Z - Metal Shields
** Images are for representation purposes only
