Description
Brand - ZEN
Item Number - SR1038-2Z ZEN

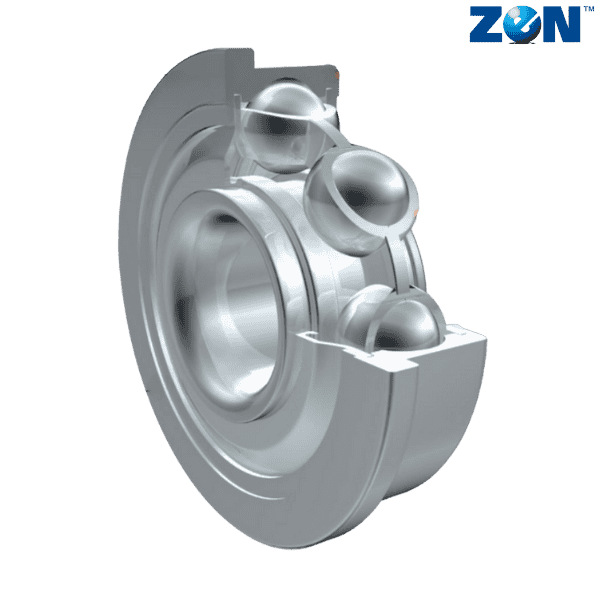

Category - Stainless Steel Deep Groove Ball bearing

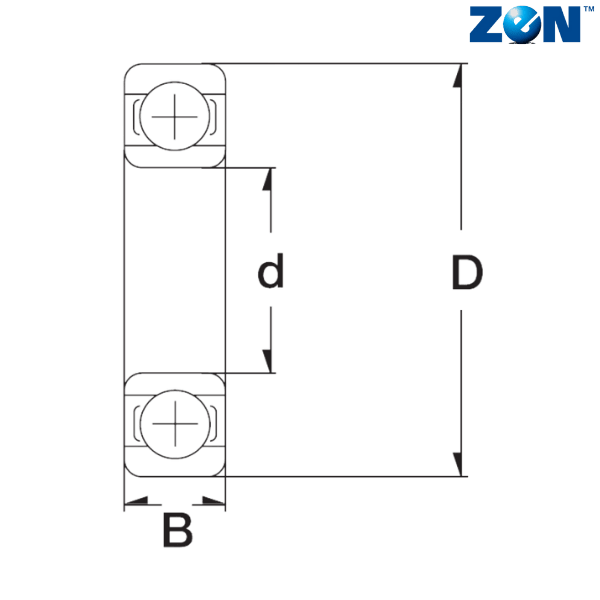

Inner Diameter (d) mm - 9.520
Inner Diameter (d) inch - 0.375
Outer Diameter (D) mm - 15.880
Outer Diameter (D) inch - 0.625
Width (B) mm - 3.970
Width (B) inch - 0.1562
Dynamic Load Rating (N) - 5108
Static Load Rating (N) - 2413
Limiting Speed (Grease) - 27
Limiting Speed (Oil) - 32
Weight (kg) - 0.02
Notes :
S - Stainless Steel
R - Inch
2Z - Metal Shields
** Images are for representation purposes only
