Description
Brand - ZEN
Item Number - SR 6 ZEN
Category - Ball Bearing (Miniature Inch Series)
Bearing Type - standard
Type - Open Type with Stainless Steel

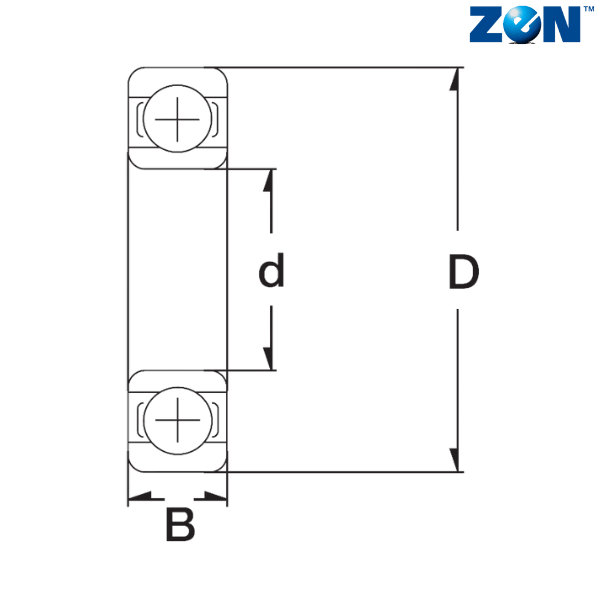

Inner Diameter (d) mm - 9.525
Outer Diameter (D) mm - 22.225
Width (mm) - 5.558
Inner Diameter (d) inch - 0.3750
Outer Diameter (D) inch - 0.8750
Width (inch) - 0.2188
Dynamic Load Rating (C) N (only 100 Cr6) - 3332
Static Load Rating (C) N (only 100 Cr6) - 1422
Limiting Speed x1000rpm (Grease) - 32.0
Limiting Speed x1000rpm (Oil) - 38.0
Approximate Weight (g) - 12
Compatible Ball Bearing (Open Type with Chrome Steel) - R 6
Notes :
R - Inch
** Images are for representation purposes only
