SR 4A-2Z ZEN

Brand - ZEN
Item Number - SR 4A-2Z ZEN
Category - Ball Bearing (Miniature Inch Series)
Bearing Type - standard
Type - Metal shields with Stainless Steel

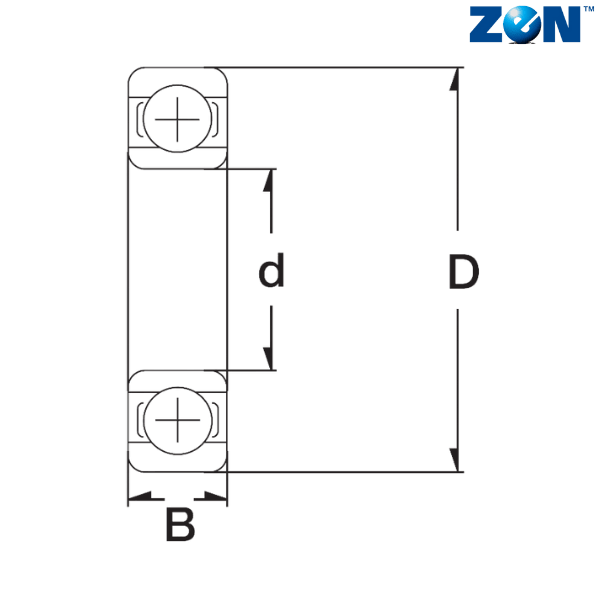

Inner Diameter (d) mm - 6.350
Outer Diameter (D) mm - 19.050
Width (mm) - 7.142
Inner Diameter (d) inch - 0.2500
Outer Diameter (D) inch - 0.7500
Width (inch) - 0.2812
Dynamic Load Rating (C) N (only 100 Cr6) - 2336
Static Load Rating (C) N (only 100 Cr6) - 896
Limiting Speed x1000rpm (Grease) - 36.0
Limiting Speed x1000rpm (Oil) - 43.0
Approximate Weight (g) - Less than 10 Grams
Compatible Ball Bearing (Rubber Seals with Chrome Steel) - R 4A-2RS
Compatible Ball Bearing (Rubber Seals with Stainless Steel) - SR 4A-2RS
Compatible Ball Bearing (Metal shields with Chrome Steel) - R 4A-2Z

Notes :
R - Inch
2Z - Metal Shields

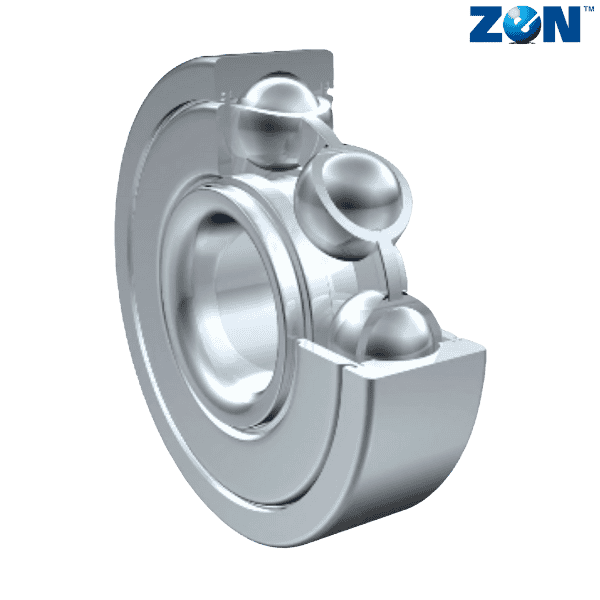

** Images are for representation purposes only
