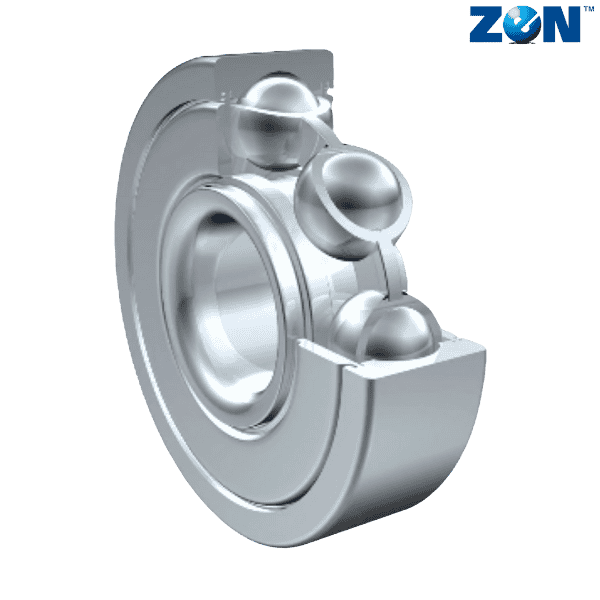

SR 4-2Z ZEN

Brand - ZEN
Item Number - SR 4-2Z ZEN
Category - Ball Bearing (Miniature Inch Series)
Bearing Type - standard
Type - Metal shields with Stainless Steel

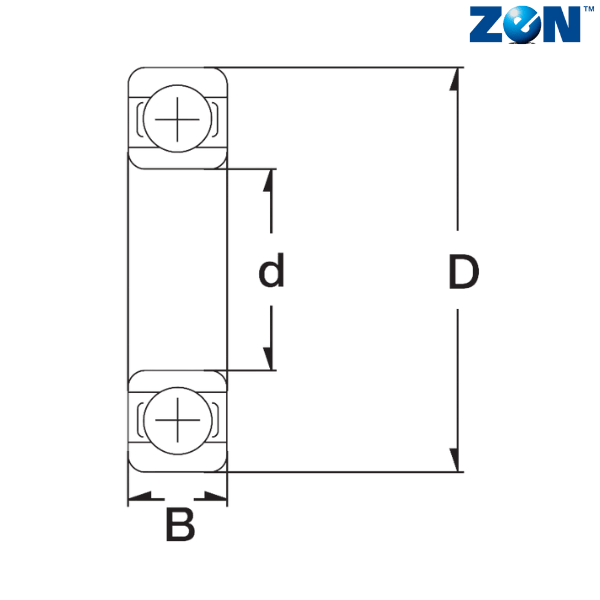

Inner Diameter (d) mm - 6.350
Outer Diameter (D) mm - 15.875
Width (mm) - 4.978
Inner Diameter (d) inch - 0.2500
Outer Diameter (D) inch - 0.6250
Width (inch) - 0.1960
Dynamic Load Rating (C) N (only 100 Cr6) - 1480
Static Load Rating (C) N (only 100 Cr6) - 621
Limiting Speed x1000rpm (Grease) - 38.0
Limiting Speed x1000rpm (Oil) - 45.0
Approximate Weight (g) - Less than 5 Grams
Compatible Ball Bearing (Rubber Seals with Chrome Steel) - R 4-2RS
Compatible Ball Bearing (Rubber Seals with Stainless Steel) - SR 4-2RS
Compatible Ball Bearing (Open Type with Chrome Steel) - R 4
Compatible Ball Bearing (Open Type with Stainless Steel) - SR 4
Compatible Ball Bearing (Metal shields with Chrome Steel) - R 4-2Z

Notes :
R - Inch
2Z - Metal Shields

** Images are for representation purposes only
