Description
Brand - ZEN

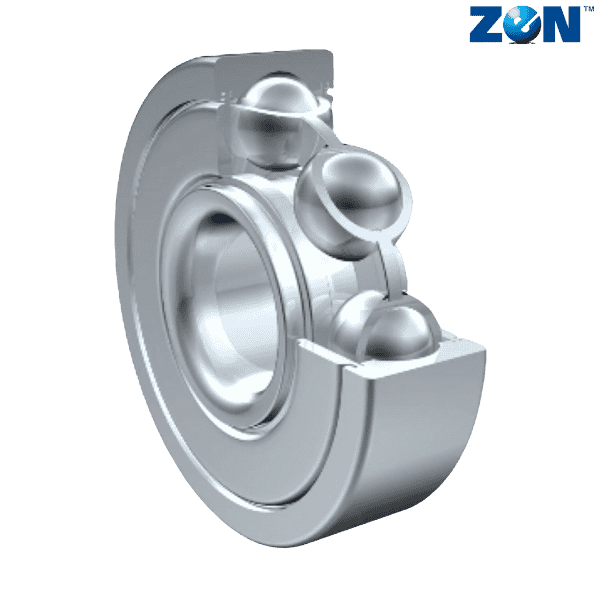

Item Number - SR 3-2RS ZEN
Category - Ball Bearing (Miniature Inch Series)
Bearing Type - standard
Type - Rubber Seals with Stainless Steel

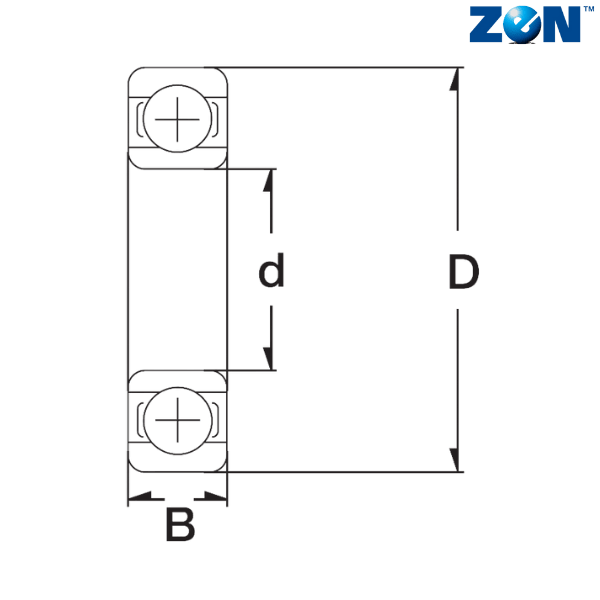

Inner Diameter (d) mm - 4.763
Outer Diameter (D) mm - 12.700
Width (mm) - 4.978
Inner Diameter (d) inch - 0.1875
Outer Diameter (D) inch - 0.5000
Width (inch) - 0.1960
Dynamic Load Rating (C) N (only 100 Cr6) - 1301
Static Load Rating (C) N (only 100 Cr6) - 488
Limiting Speed x1000rpm (Grease) - 43.0
Limiting Speed x1000rpm (Oil) - 53.0
Approximate Weight (g) - Less than 3 Grams
Compatible Ball Bearing (Metal shields with Chrome Steel) - R 3-2Z
Compatible Ball Bearing (Metal shields with Stainless Steel) - SR 3-2Z
Compatible Ball Bearing (Rubber seals with Chrome Steel) - R 3-2RS
Notes :
R - Inch
2RS - Rubber Seals
** Images are for representation purposes only
