Description
Brand - ZEN
Item Number - SR 2-5-2Z ZEN
Category - Ball Bearing (Miniature Inch Series)
Bearing Type - standard
Type - Metal shields with Stainless Steel

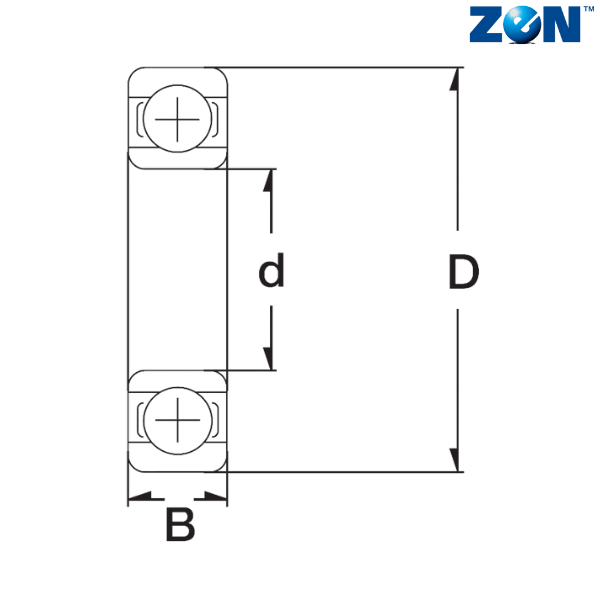

Inner Diameter (d) mm - 3.175
Outer Diameter (D) mm - 7.938
Width (mm) - 3.571
Inner Diameter (d) inch - 0.1250
Outer Diameter (D) inch - 0.3125
Width (inch) - 0.1406
Dynamic Load Rating (C) N (only 100 Cr6) - 558
Static Load Rating (C) N (only 100 Cr6) - 180
Limiting Speed x1000rpm (Grease) - 60.0
Limiting Speed x1000rpm (Oil) - 67.0
Approximate Weight (g) - Less than 1 Gram
Compatible Ball Bearing (Metal shields with Chrome Steel) - R 2-5-2Z
Notes :
R - Inch
2Z - Metal Shields

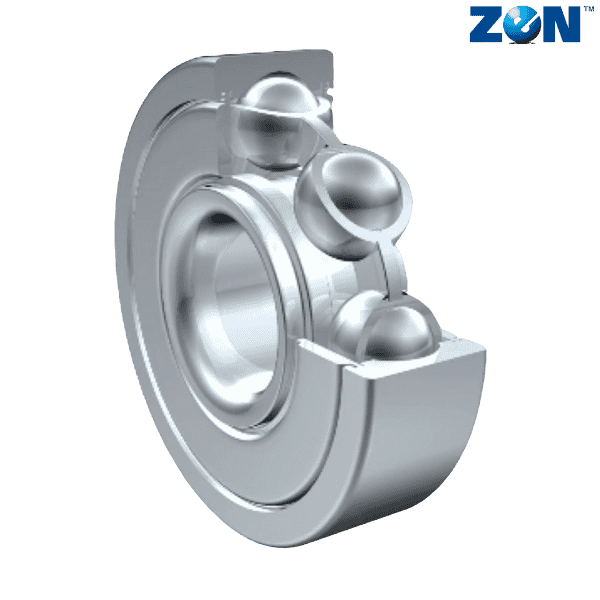

** Images are for representation purposes only
