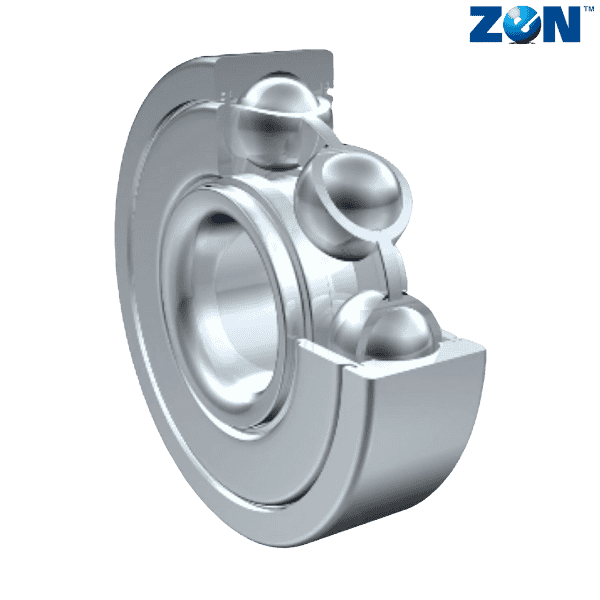

SR 2-2Z ZEN

Brand - ZEN
Item Number - SR 2-2Z ZEN
Category - Ball Bearing (Miniature Inch Series)
Bearing Type - standard
Type - Metal shields with Stainless Steel

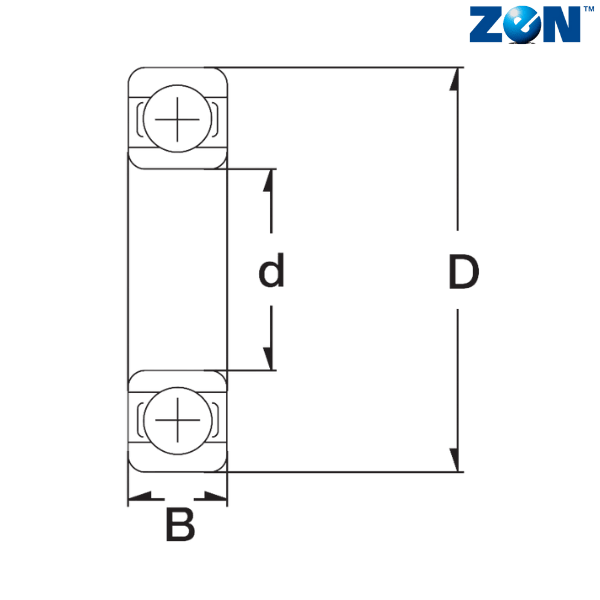

Inner Diameter (d) mm - 3.175
Outer Diameter (D) mm - 9.525
Width (mm) - 3.967
Inner Diameter (d) inch - 0.1250
Outer Diameter (D) inch - 0.3750
Width (inch) - 0.1562
Dynamic Load Rating (C) N (only 100 Cr6) - 631
Static Load Rating (C) N (only 100 Cr6) - 219
Limiting Speed x1000rpm (Grease) - 56.0
Limiting Speed x1000rpm (Oil) - 67.0
Approximate Weight (g) - Less than 2 Grams
Compatible Ball Bearing (Rubber Seals with Chrome Steel) - R 2-2RS
Compatible Ball Bearing (Rubber Seals with Stainless Steel) - SR 2-2RS
Compatible Ball Bearing (Open Type with Chrome Steel) - R 2
Compatible Ball Bearing (Open Type with Stainless Steel) - SR 2
Compatible Ball Bearing (Metal shields with Chrome Steel) - R 2-2Z

Notes :
R - Inch
2Z - Metal Shields

** Images are for representation purposes only
