Description
Brand - ZEN
Item Number - SR 188-2Z ZEN
Category - Ball Bearing (Miniature Inch Series)
Bearing Type - standard
Type - Metal shields with Stainless Steel

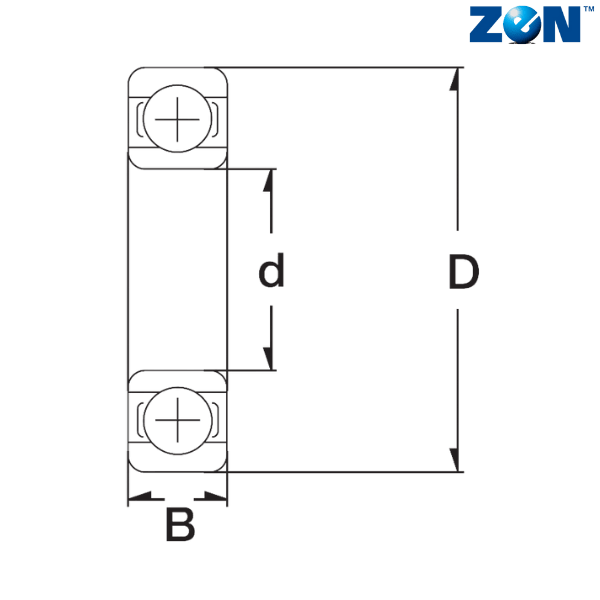

Inner Diameter (d) mm - 6.350
Outer Diameter (D) mm - 12.700
Width (mm) - 4.763
Inner Diameter (d) inch - 0.2500
Outer Diameter (D) inch - 0.5000
Width (inch) - 0.1875
Dynamic Load Rating (C) N (only 100 Cr6) - 1082
Static Load Rating (C) N (only 100 Cr6) - 442
Limiting Speed x1000rpm (Grease) - 40.0
Limiting Speed x1000rpm (Oil) - 50.0
Approximate Weight (g) - Less than 3 Grams
Compatible Ball Bearing (Metal shields with Chrome Steel) - R 188-2Z
Notes :
R - Inch
2Z - Metal Shields
** Images are for representation purposes only
