Description
Brand - ZEN
Item Number - SR 1810-2Z ZEN
Category - Ball Bearing (Miniature Inch Series)
Bearing Type - standard
Type - Metal shields with Stainless Steel

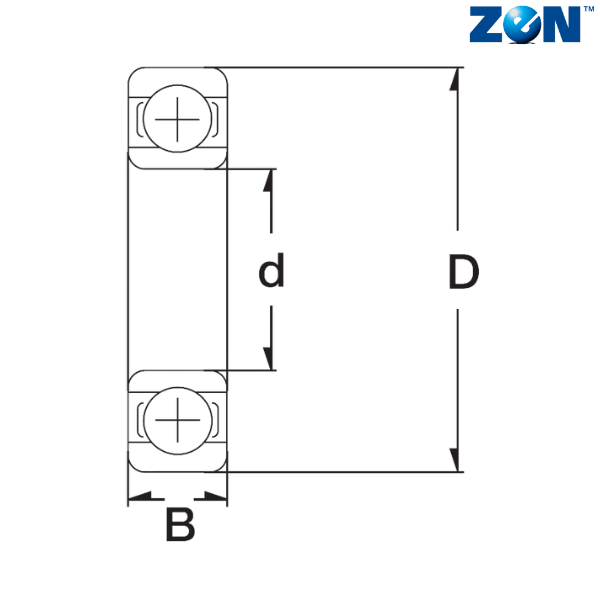

Inner Diameter (d) mm - 7.938
Outer Diameter (D) mm - 12.700
Width (mm) - 3.967
Inner Diameter (d) inch - 0.3125
Outer Diameter (D) inch - 0.5000
Width (inch) - 0.1562
Dynamic Load Rating (C) N (only 100 Cr6) - 542
Static Load Rating (C) N (only 100 Cr6) - 276
Limiting Speed x1000rpm (Grease) - 40.0
Limiting Speed x1000rpm (Oil) - 48.0
Approximate Weight (g) - Less than 2 Grams
Compatible Ball Bearing (Metal shields with Chrome Steel) - R 1810-2Z
Notes :
R - Inch
2Z - Metal Shields

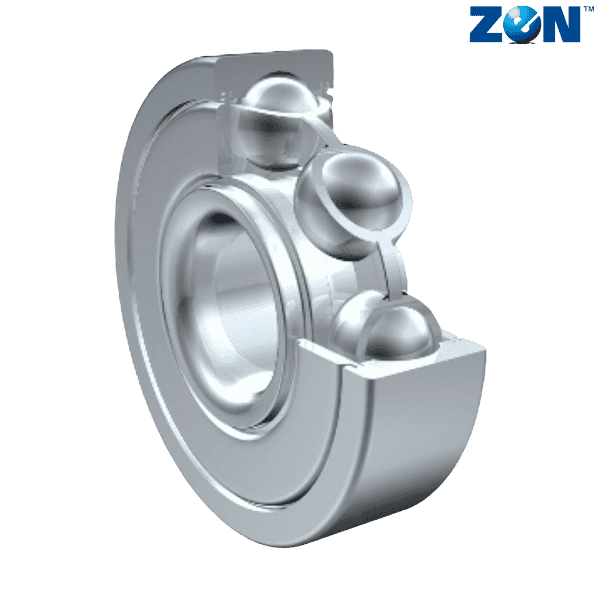

** Images are for representation purposes only
