Description
Brand - ZEN
Item Number - SR 156-2TS ZEN
Category - Ball Bearing (Miniature Inch Series)
Bearing Type - standard
Type - PTFE seals with Stainless Steel

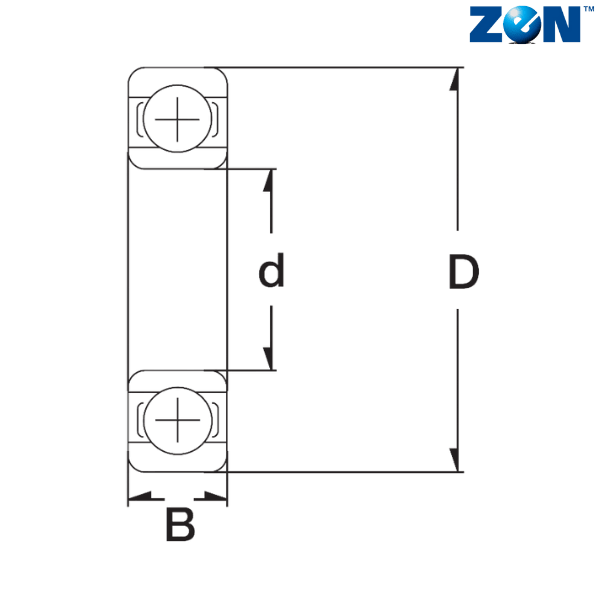

Inner Diameter (d) mm - 4.763
Outer Diameter (D) mm - 7.938
Width (mm) - 3.175
Inner Diameter (d) inch - 0.1875
Outer Diameter (D) inch - 0.3125
Width (inch) - 0.1250
Dynamic Load Rating (C) N (only 100 Cr6) - 359
Static Load Rating (C) N (only 100 Cr6) - 150
Limiting Speed x1000rpm (Grease) - 53.0
Limiting Speed x1000rpm (Oil) - 63.0
Approximate Weight (g) - Less than 1 Gram
Compatible Ball Bearing (Metal shields with Chrome Steel) - R 156-2Z
Compatible Ball Bearing (Metal shields with Stainless Steel) - SR 156-2Z
Compatible Ball Bearing (PTFE seals with Chrome Steel) - R 156-2TS
Notes :
R - Inch
2TS - PTFE Seals

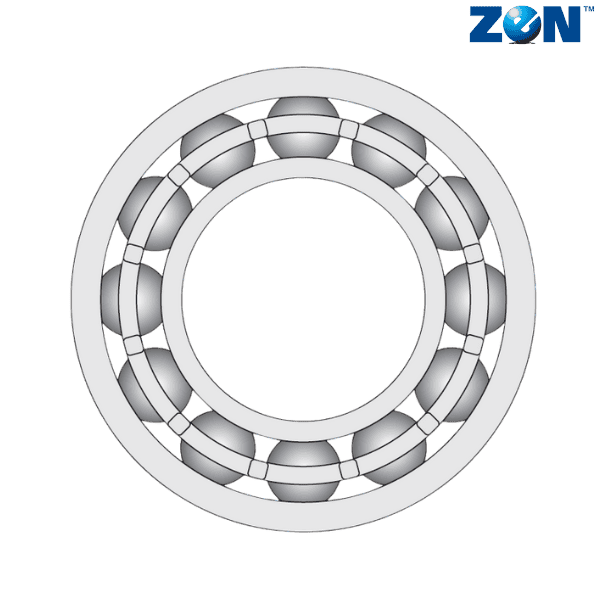

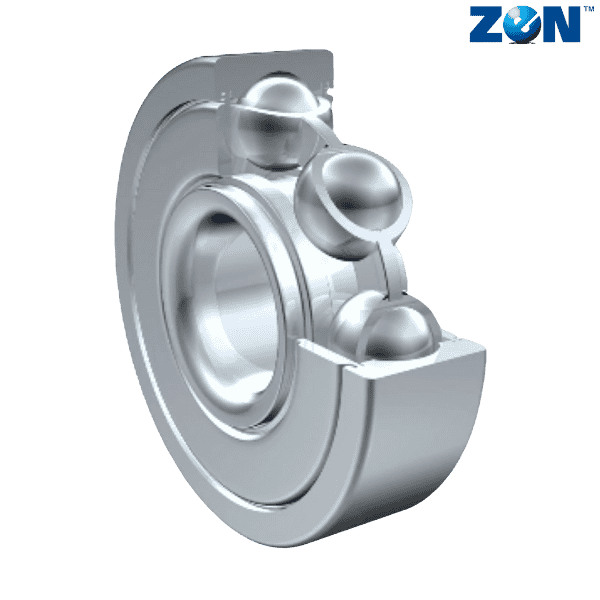

** Images are for representation purposes only
