Description
Brand - ZEN
Item Number - SR 155 ZEN
Category - Ball Bearing (Miniature Inch Series)
Bearing Type - standard
Type - Open Type with Stainless Steel

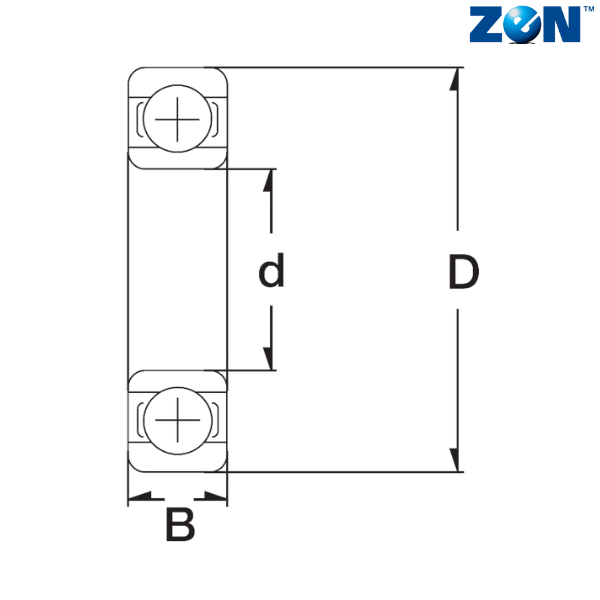

Inner Diameter (d) mm - 3.967
Outer Diameter (D) mm - 7.938
Width (mm) - 2.779
Inner Diameter (d) inch - 0.1562
Outer Diameter (D) inch - 0.3125
Width (inch) - 0.1094
Dynamic Load Rating (C) N (only 100 Cr6) - 359
Static Load Rating (C) N (only 100 Cr6) - 150
Limiting Speed x1000rpm (Grease) - 53.0
Limiting Speed x1000rpm (Oil) - 63.0
Approximate Weight (g) - Less than 1 Gram
Compatible Ball Bearing (Open Type with Chrome Steel) - R 155
Notes :
R - Inch

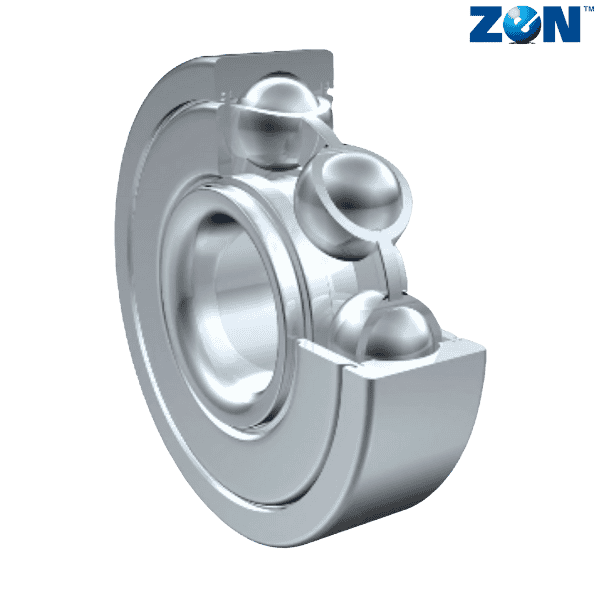

** Images are for representation purposes only
