Description
Brand - ZEN
Item Number - SR 144 ZEN
Category - Ball Bearing (Miniature Inch Series)
Bearing Type - standard
Type - Open Type with Stainless Steel

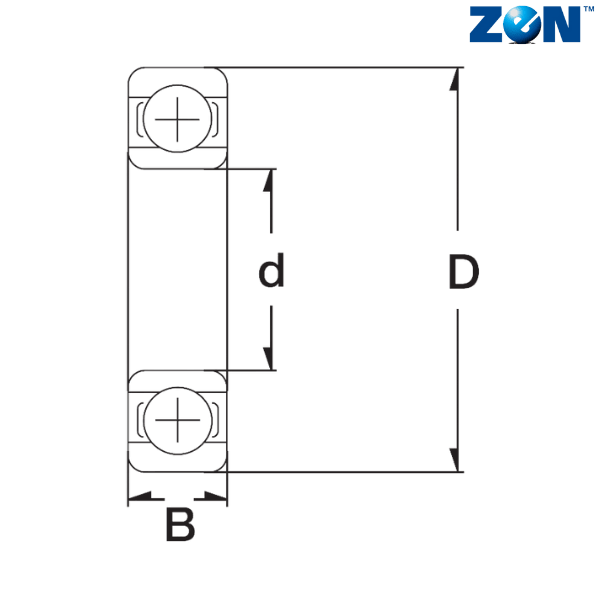

Inner Diameter (d) mm - 3.175
Outer Diameter (D) mm - 6.350
Width (mm) - 2.380
Inner Diameter (d) inch - 0.1250
Outer Diameter (D) inch - 0.2500
Width (inch) - 0.0937
Dynamic Load Rating (C) N (only 100 Cr6) - 284
Static Load Rating (C) N (only 100 Cr6) - 96
Limiting Speed x1000rpm (Grease) - 67.0
Limiting Speed x1000rpm (Oil) - 80.0
Approximate Weight (g) - Less than 1 Gram
Compatible Ball Bearing (Open Type with Chrome Steel) - R 144
Notes :
R - Inch

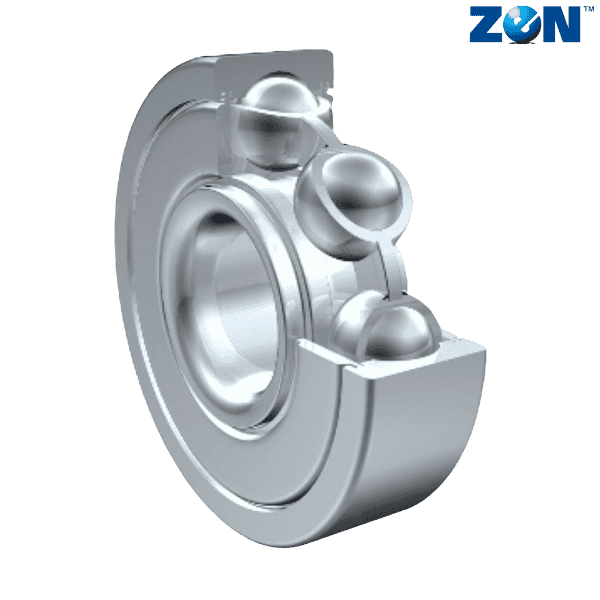

** Images are for representation purposes only
