Description
Brand - ZEN
Item Number - SR 133 ZEN
Category - Ball Bearing (Miniature Inch Series)
Bearing Type - standard
Type - Open Type with Stainless Steel

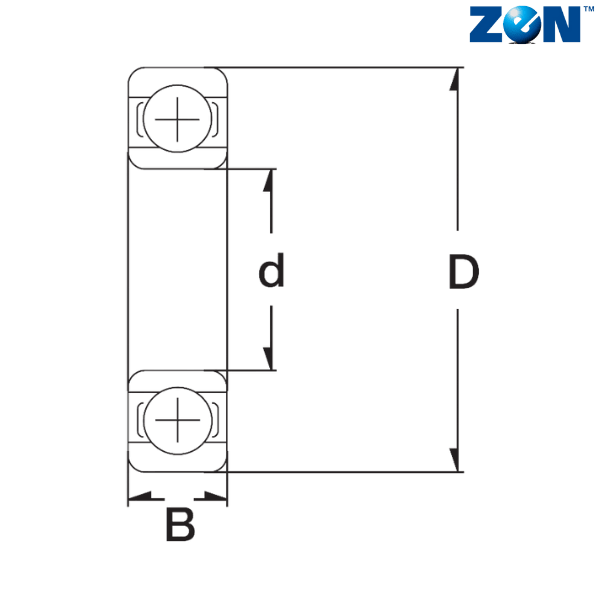

Inner Diameter (d) mm - 2.380
Outer Diameter (D) mm - 4.763
Width (mm) - 1.588
Inner Diameter (d) inch - 0.0937
Outer Diameter (D) inch - 0.1875
Width (inch) - 0.0625
Dynamic Load Rating (C) N (only 100 Cr6) - 144
Static Load Rating (C) N (only 100 Cr6) - 53
Limiting Speed x1000rpm (Grease) - 80.0
Limiting Speed x1000rpm (Oil) - 95.0
Approximate Weight (g) - Less than 1 Gram
Compatible Ball Bearing (Open Type with Chrome Steel) - R 133
Notes :
R - Inch

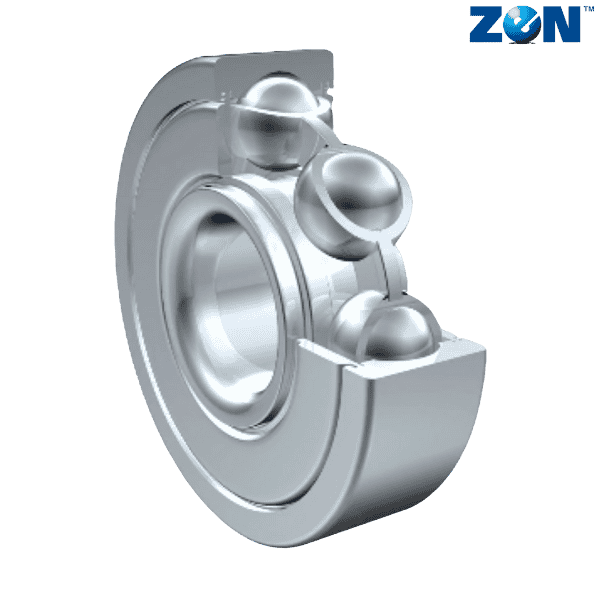

** Images are for representation purposes only
