Description
Brand - RBC LUBRON
Item Number - SPBZ1608-TF RBC LUBRON
Category - Maintenance-Free Standard Spherical Plain Bearings

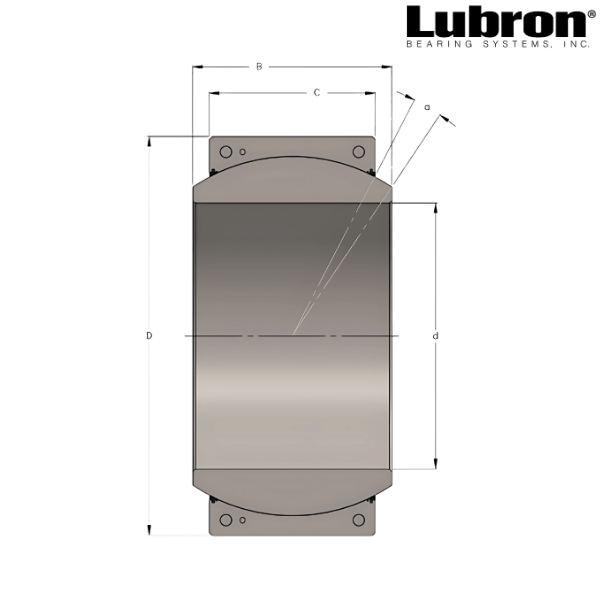

Principal Dimensions & Load Ratings (Imperial) :
Inside Diameter (d) - 16.5 inch
Outer Diameter (D) - 22.05 inch
Inner Ring Width (B) - 7.48 inch
Outer Ring Width (C) - 6.3 inch
Outside Diameter of Inner Ring - 19.29 inch
Angle of Tilt - 3°
Maximum Dynamic Load - 4766 kip
Maximum Static Load - 7980 kip
Recommended Dynamic Load - 798 kip
Recommended Static Load - 3456 kip
Approximate Weight [17-4PH] - 300 lbs
Description of Suffixes and Prefixes :
SPB - Axial Split Spherical Plain Bearing
TF - Lubron TF
Other salient points to be noted : Characteristics :
• Imperial units
• Axial split
• Two-piece 17-4PH stainless steel outer ring
• One-piece 17-4PH stainless steel inner ring
• Lubron TF permanently bonded and mechanically locked to the outer ring inner diameter
• Heavy duty seals on both sides

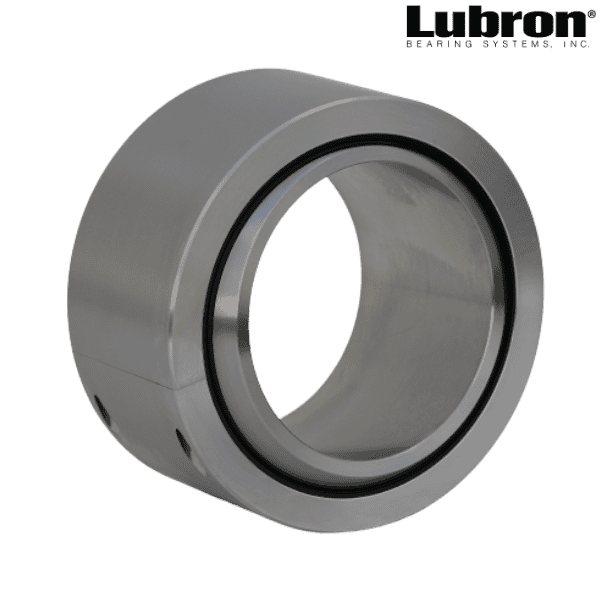

♦ ♦ Images are for representation purposes only
