Description
Brand - ZEN
Item Number - SPA212 ZEN
Category - Stainless Steel Pillow Blocks (SPA)

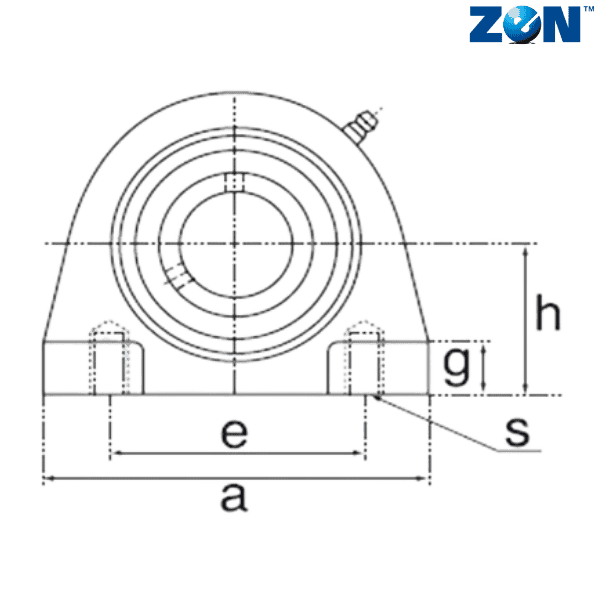

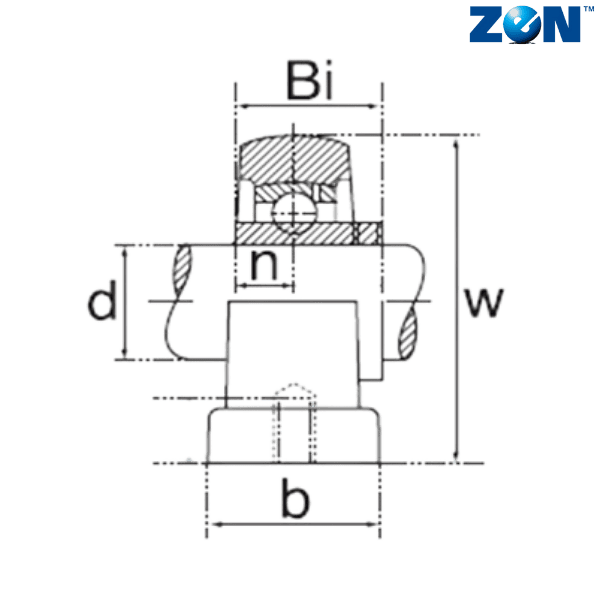

Inner Diameter (d) mm - 60
Base to Center Height (h) mm - 69.9
Overall Length (a) mm - 150
Bolt Center to Center Length (e) mm - 114
b (mm) - 68
g (mm) - 25
Bolt Diameter (s) - M16
w (mm) - 138
Bi (mm) - 65.1
n (mm) - 25.4
Weight (kg) - 3.7
Bearing - SUC212

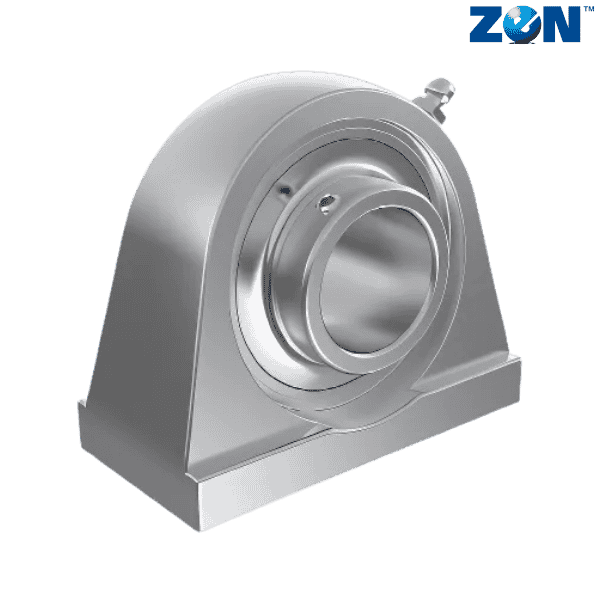

** Images are for representation purposes only
