Description

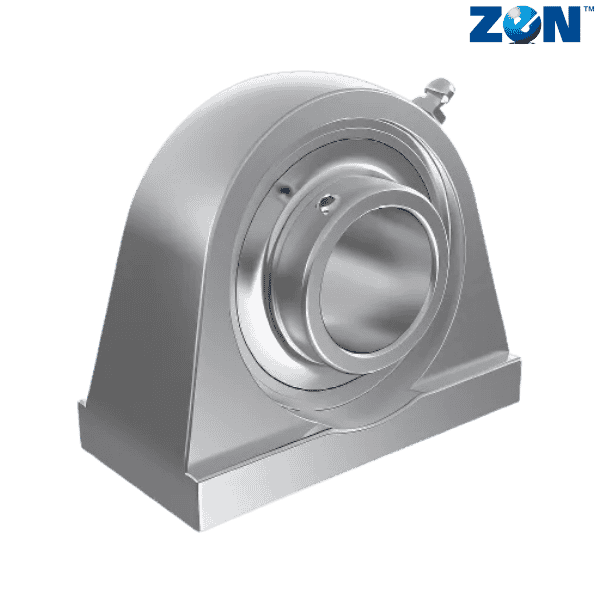

Brand - ZEN
Item Number - SPA211 ZEN
Category - Stainless Steel Pillow Blocks (SPA)

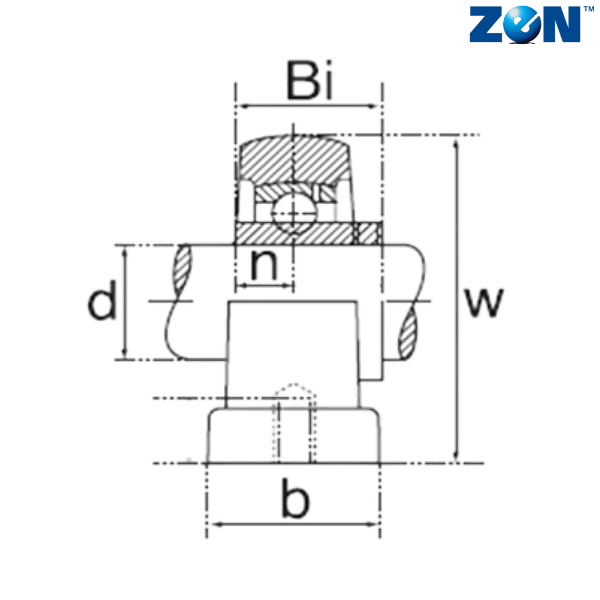

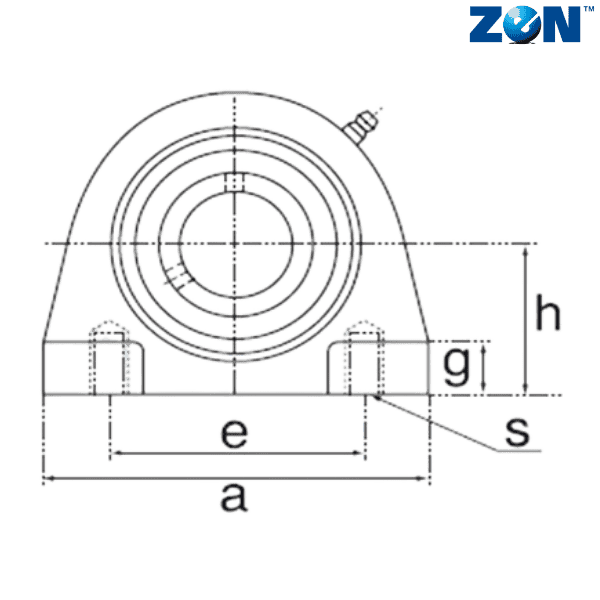

Inner Diameter (d) mm - 55
Base to Center Height (h) mm - 63.5
Overall Length (a) mm - 140
Bolt Center to Center Length (e) mm - 104
b (mm) - 66
g (mm) - 25
Bolt Diameter (s) - M16
w (mm) - 125
Bi (mm) - 55.6
n (mm) - 22.2
Weight (kg) - 2.8
Bearing - SUC211
** Images are for representation purposes only
