Description
Brand - ZEN
Item Number - SPA210 ZEN
Category - Stainless Steel Pillow Blocks (SPA)

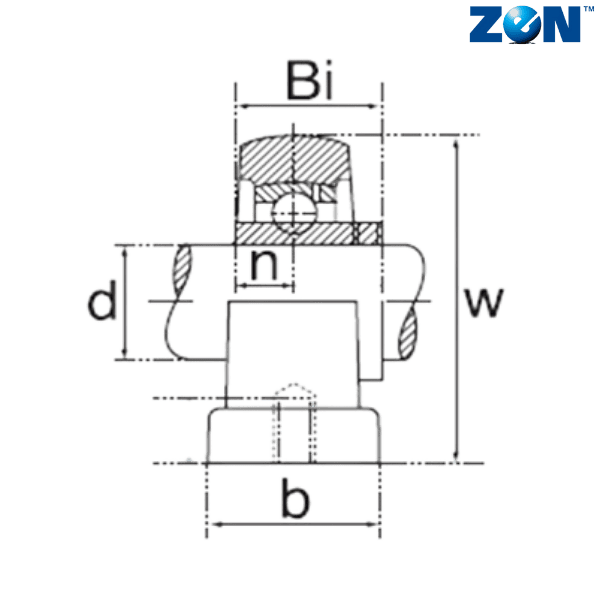

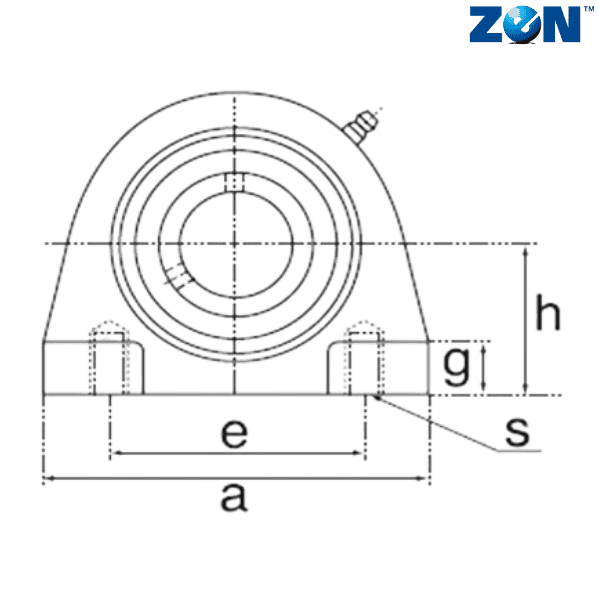

Inner Diameter (d) mm - 50
Base to Center Height (h) mm - 57.2
Overall Length (a) mm - 130
Bolt Center to Center Length (e) mm - 94
b (mm) - 60
g (mm) - 25
Bolt Diameter (s) - M16
w (mm) - 116
Bi (mm) - 51.6
n (mm) - 19
Weight (kg) - 2.4
Bearing - SUC210

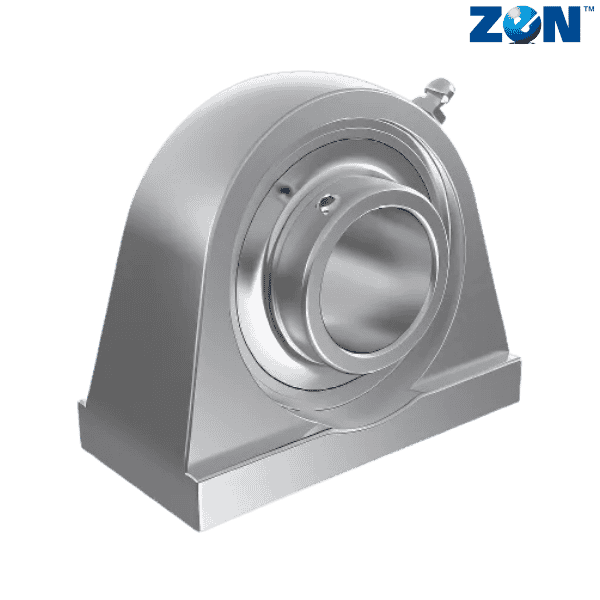

** Images are for representation purposes only
