Description
Brand - ZEN
Item Number - SPA209 ZEN

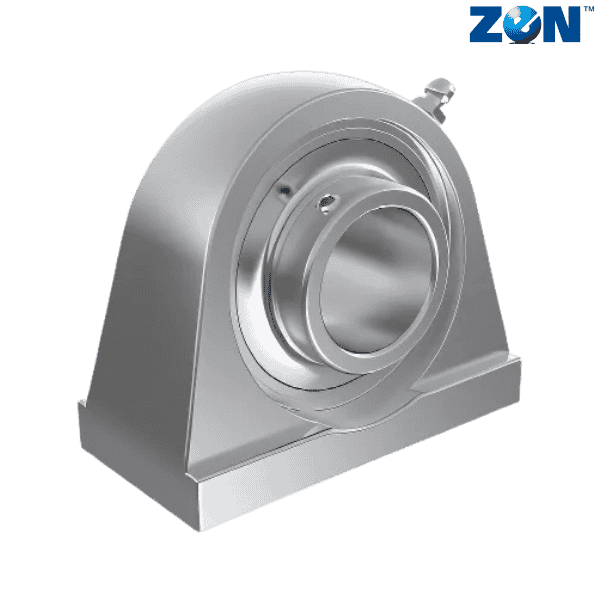

Category - Stainless Steel Pillow Blocks (SPA)

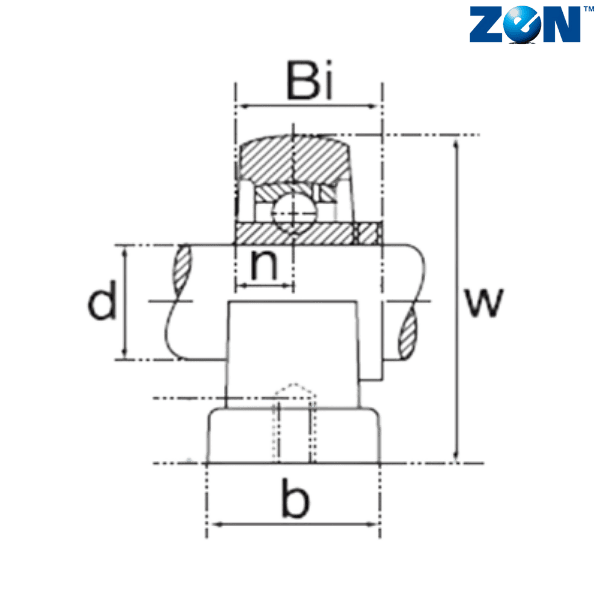

Inner Diameter (d) mm - 45

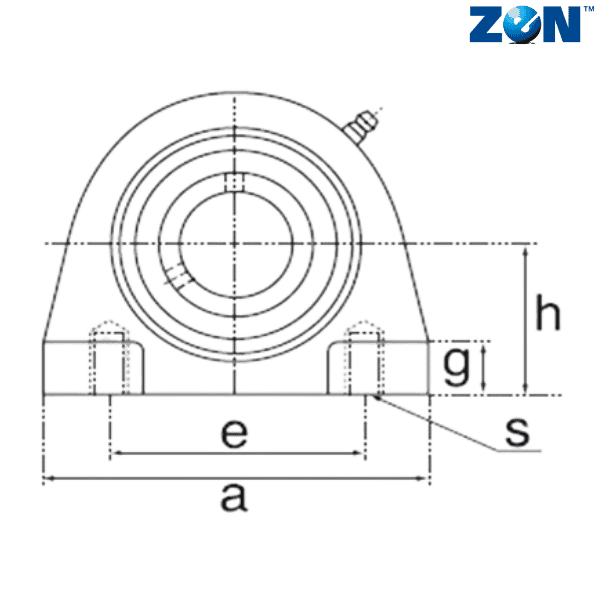

Base to Center Height (h) mm - 54.2
Overall Length (a) mm - 120
Bolt Center to Center Length (e) mm - 90
b (mm) - 54
g (mm) - 25
Bolt Diameter (s) - M14
w (mm) - 108
Bi (mm) - 49.2
n (mm) - 19
Weight (kg) - 1.8
Bearing - SUC209
** Images are for representation purposes only
