Description
Brand - ZEN

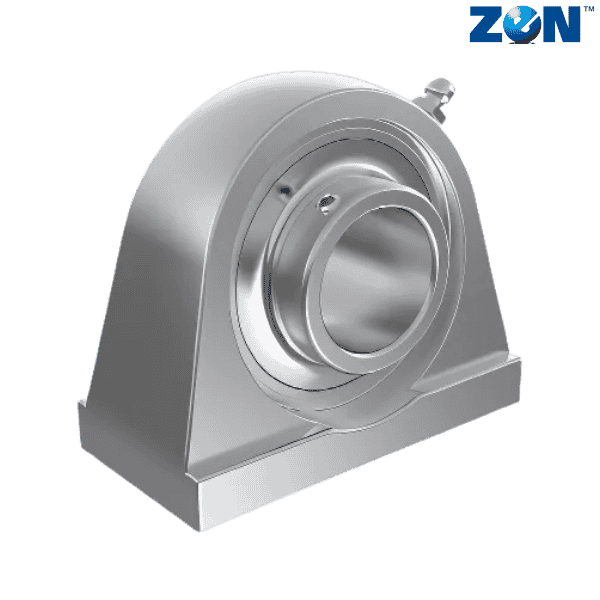

Item Number - SPA208 ZEN
Category - Stainless Steel Pillow Blocks (SPA)

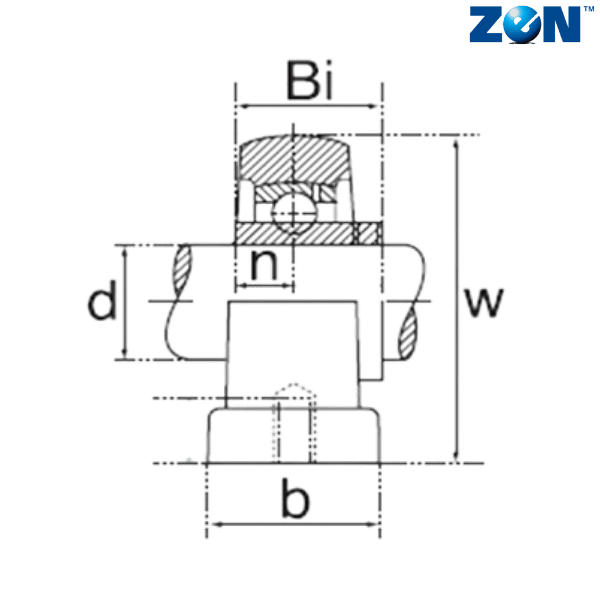

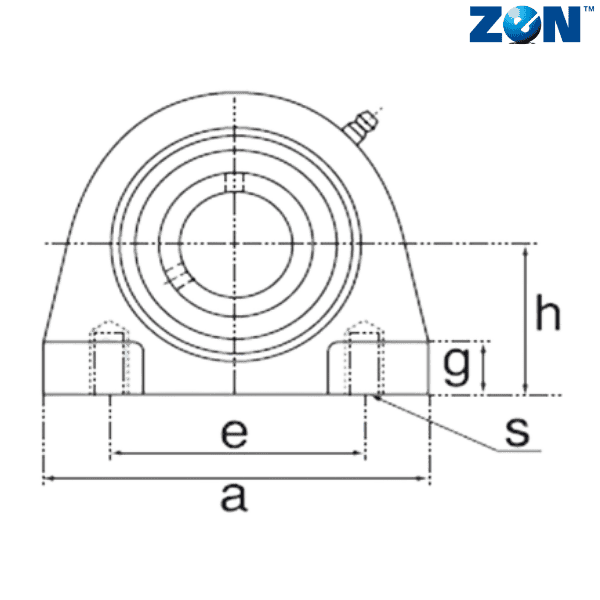

Inner Diameter (d) mm - 40
Base to Center Height (h) mm - 49.2
Overall Length (a) mm - 116
Bolt Center to Center Length (e) mm - 84
b (mm) - 54
g (mm) - 20
Bolt Diameter (s) - M14
w (mm) - 100
Bi (mm) - 49.2
n (mm) - 19
Weight (kg) - 1.75
Bearing - SUC208
** Images are for representation purposes only
