Description
Brand - ZEN
Item Number - SPA207 ZEN
Category - Stainless Steel Pillow Blocks (SPA)

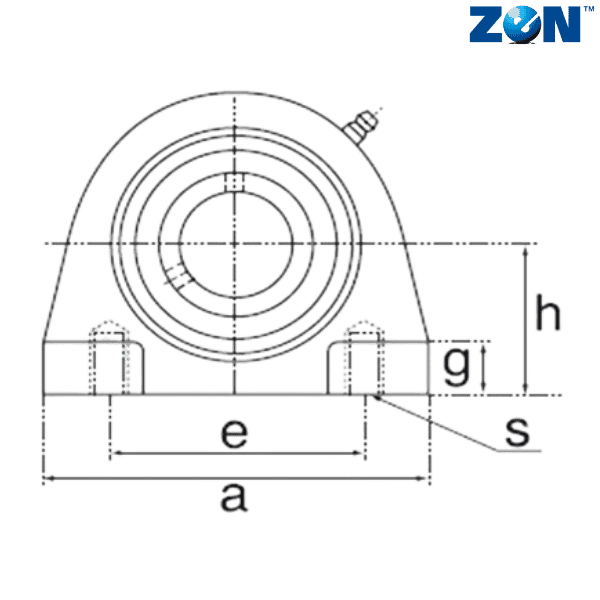

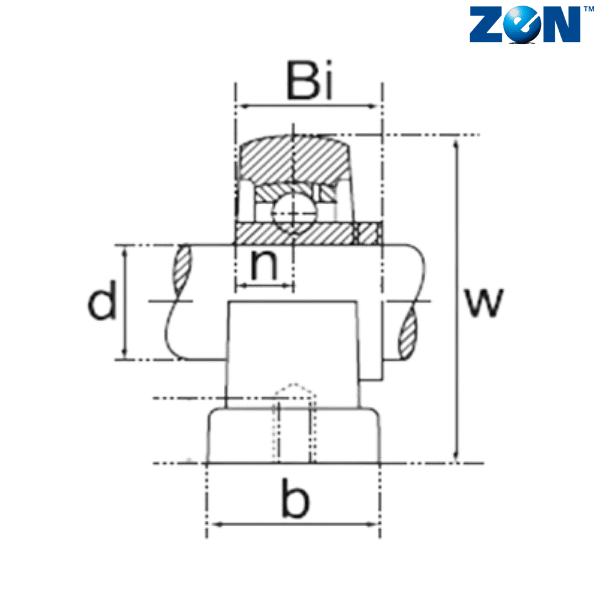

Inner Diameter (d) mm - 35
Base to Center Height (h) mm - 47.9
Overall Length (a) mm - 110
Bolt Center to Center Length (e) mm - 80
b (mm) - 48
g (mm) - 20
Bolt Diameter (s) - M14
w (mm) - 95
Bi (mm) - 42.9
n (mm) - 17.5
Weight (kg) - 1.38
Bearing - SUC207

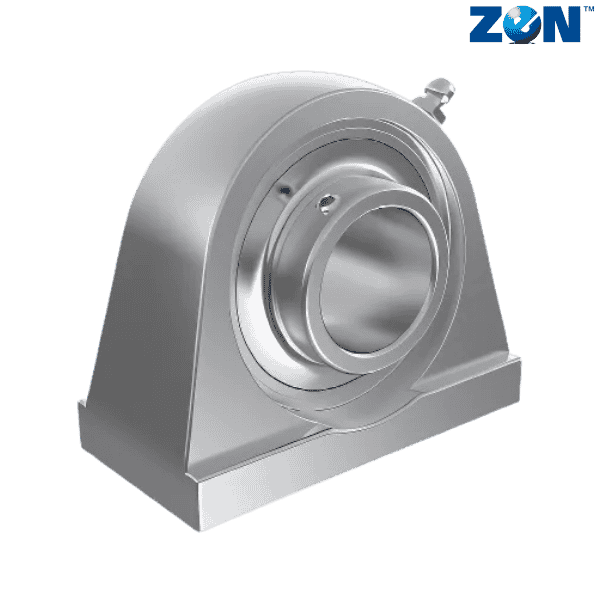

** Images are for representation purposes only
