Description

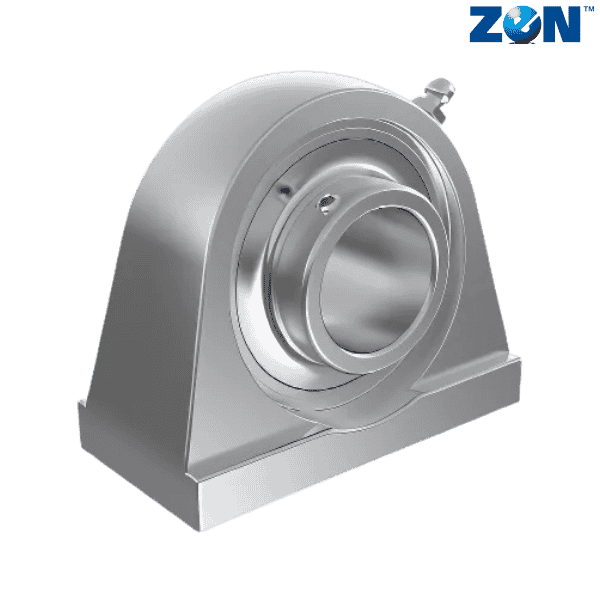

Brand - ZEN
Item Number - SPA206 ZEN
Category - Stainless Steel Pillow Blocks (SPA)

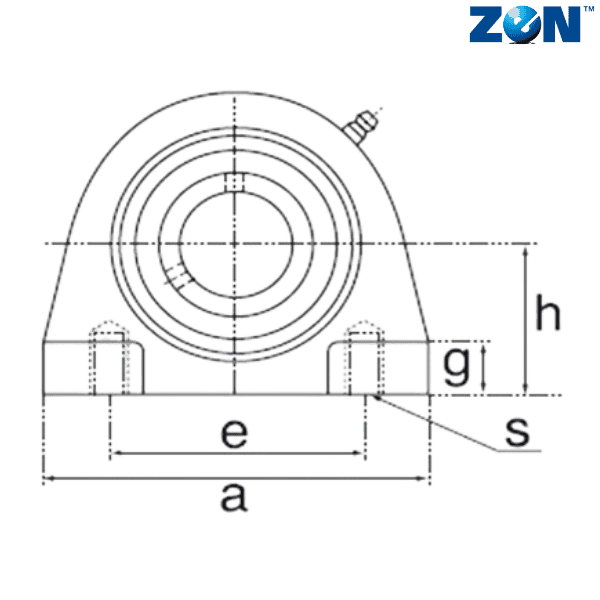

Inner Diameter (d) mm - 30
Base to Center Height (h) mm - 42.9
Overall Length (a) mm - 94
Bolt Center to Center Length (e) mm - 66
b (mm) - 48
g (mm) - 18
Bolt Diameter (s) - M14

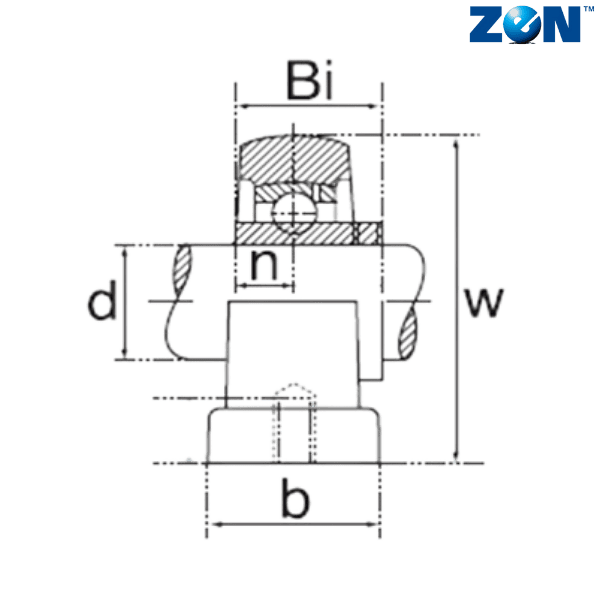

w (mm) - 84
Bi (mm) - 38.1
n (mm) - 15.9
Weight (kg) - 0.8
Bearing - SUC206
** Images are for representation purposes only
