Description
Brand - ZEN
Item Number - SPA205 ZEN
Category - Stainless Steel Pillow Blocks (SPA)

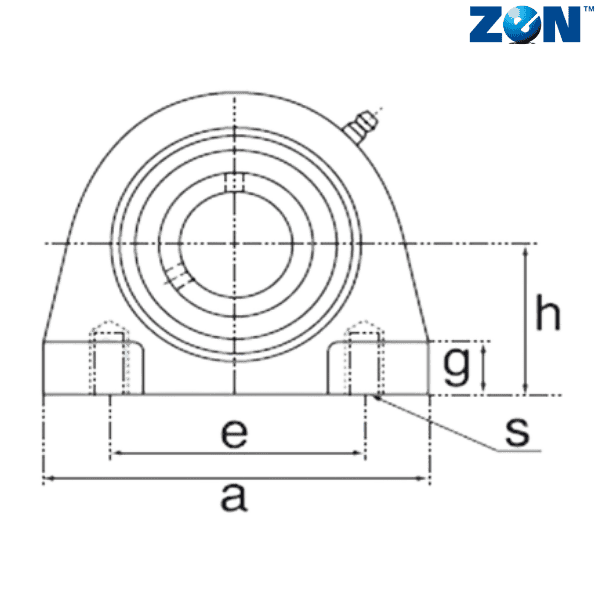

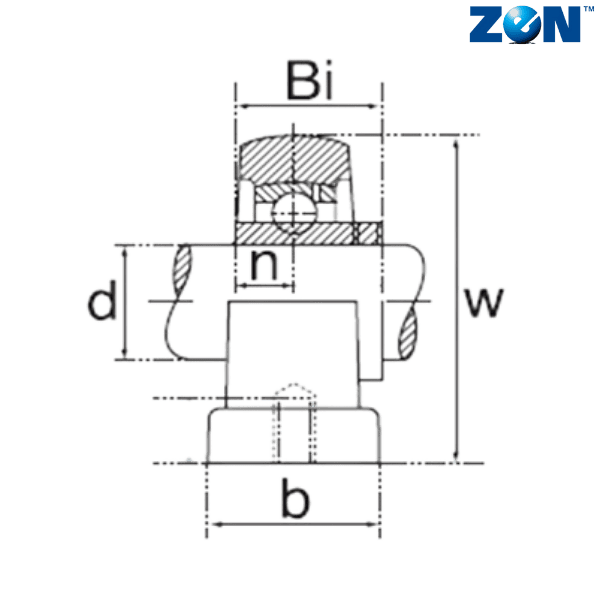

Inner Diameter (d) mm - 25
Base to Center Height (h) mm - 36.5
Overall Length (a) mm - 84
Bolt Center to Center Length (e) mm - 56
b (mm) - 38
g (mm) - 15
Bolt Diameter (s) - M10
w (mm) - 72
Bi (mm) - 34.1
n (mm) - 14.3
Weight (kg) - 0.67
Bearing - SUC205

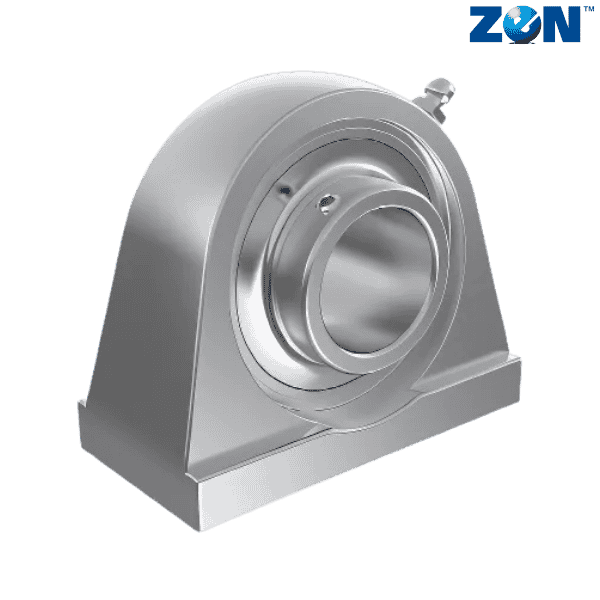

** Images are for representation purposes only
