Description
Brand - ZEN
Item Number - SPA201 ZEN
Category - Stainless Steel Pillow Blocks (SPA)

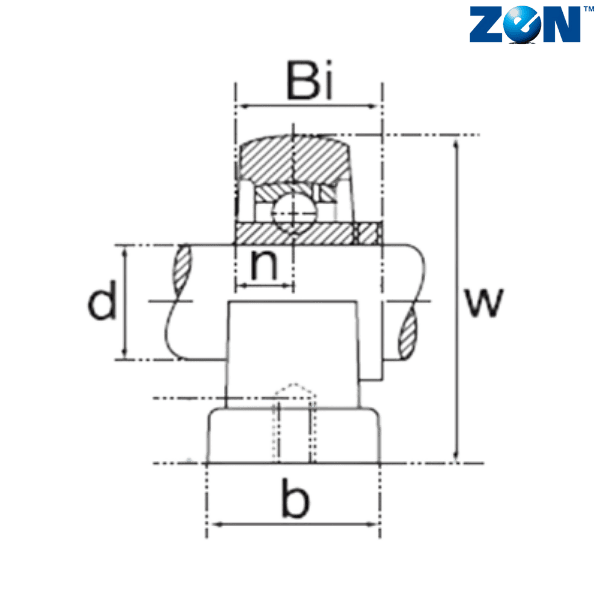

Inner Diameter (d) mm - 12

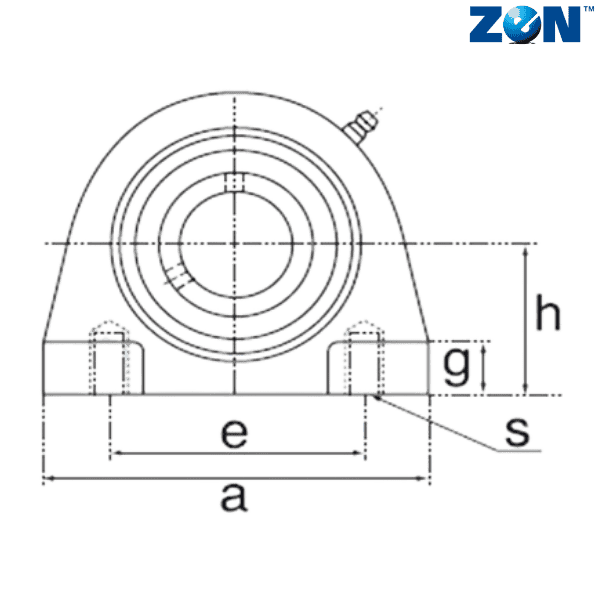

Base to Center Height (h) mm - 30.2
Overall Length (a) mm - 72.6
Bolt Center to Center Length (e) mm - 52
b (mm) - 38
g (mm) - 15
Bolt Diameter (s) - M10
w (mm) - 64
Bi (mm) - 31
n (mm) - 12.7
Weight (kg) - 0.57
Bearing - SUC201

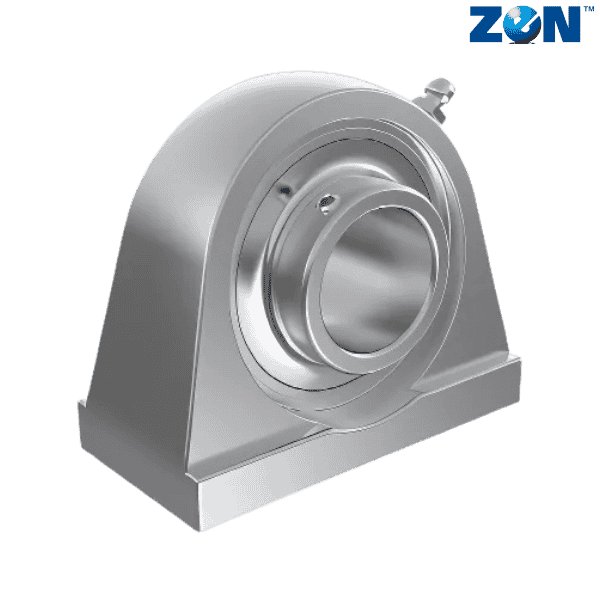

** Images are for representation purposes only
