SP870-17 SILVERTHIN

Brand - SILVERTHIN
Item Number - SP870-17 SILVERTHIN
Category - Mating Pinions for SK6 Series Slewing Ring Bearing

Principal Dimensions & Load Ratings (Imperial) :

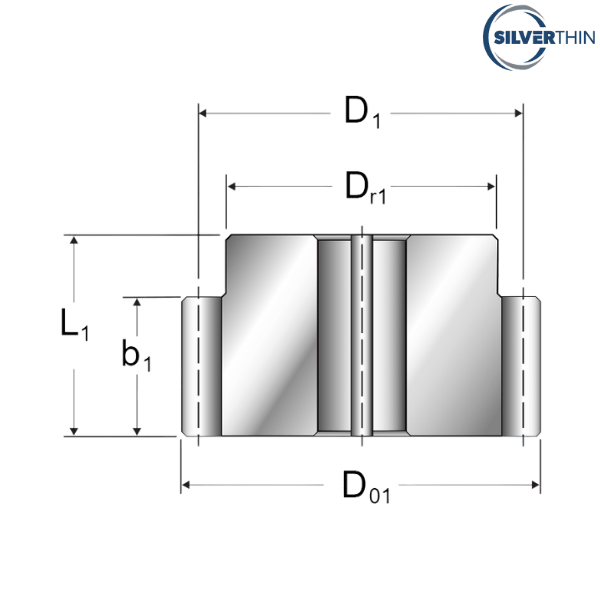

Length of Pinion (L1) - 5.825 inch
Pitch Diameter (D1) - 6.8 inch
Outside Diameter (Do1) - 7.44 inch
Hub Diameter (Dr1) - 5.51 inch

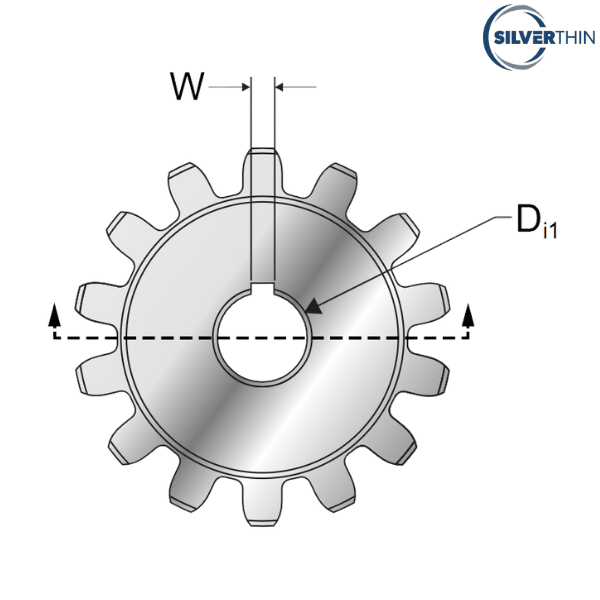

Stock Bore (Di1) - 2.675 inch
Square Key Size, Nominal (w) - 0.625 inch
Approximate Weight - 46.2 lbs
Tooth Form - Stub involute spur gear
Number of Teeth (z1) - 17 pcs.
Diametral Pitch (Pd) - 2.5 inch
Face Width (b1) - 4.3 inch
Compatible Part Numbers - STE-870

Principal Dimensions & Load Ratings (Metric) :
Approximate Weight - 20.95 kg

♦ ♦ Images are for representation purposes only
