SP590705-14 SILVERTHIN

Brand - SILVERTHIN
Item Number - SP590705-14 SILVERTHIN
Category - Mating Pinions for SK6 Series Slewing Ring Bearing

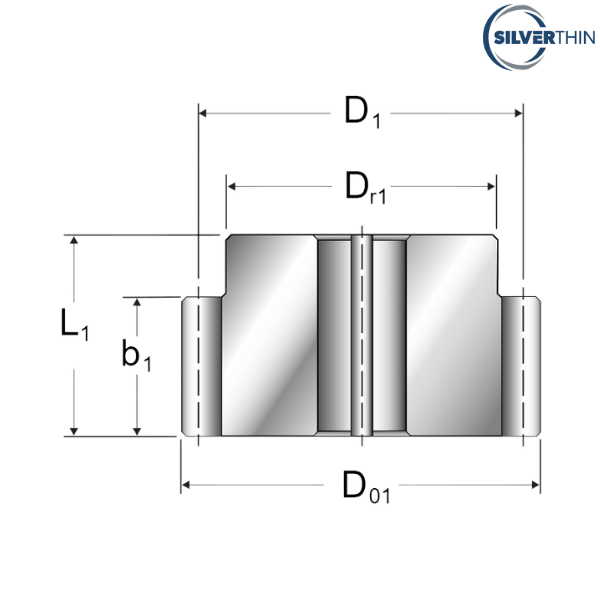

Principal Dimensions & Load Ratings (Imperial) :
Length of Pinion (L1) - 2.88 inch
Pitch Diameter (D1) - 4.667 inch
Outside Diameter (Do1) - 5.2 inch
Hub Diameter (Dr1) - 3.88 inch

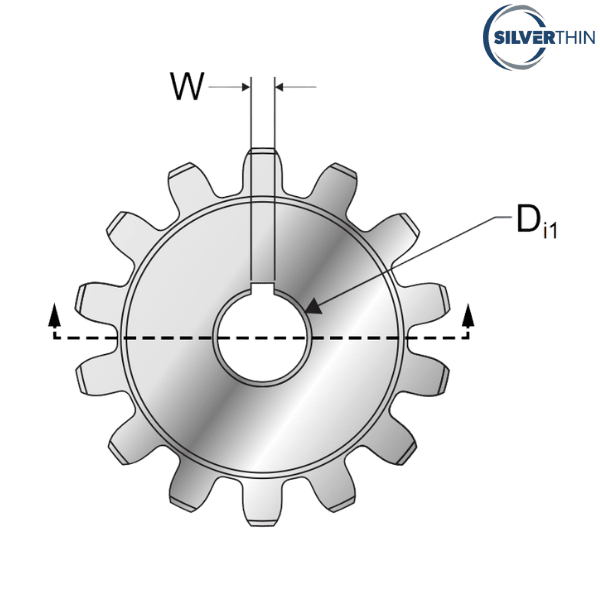

Stock Bore (Di1) - 1.25 inch
Square Key Size, Nominal (w) - 0.3125 inch
Approximate Weight - 11.4 lbs
Tooth Form - Stub involute spur gear
Number of Teeth (z1) - 14 pcs.
Diametral Pitch (Pd) - 3 inch
Face Width (b1) - 2 inch
Compatible Part Numbers - STE-590 through STE-705

Principal Dimensions & Load Ratings (Metric) :
Approximate Weight - 5.17 kg

♦ ♦ Images are for representation purposes only
