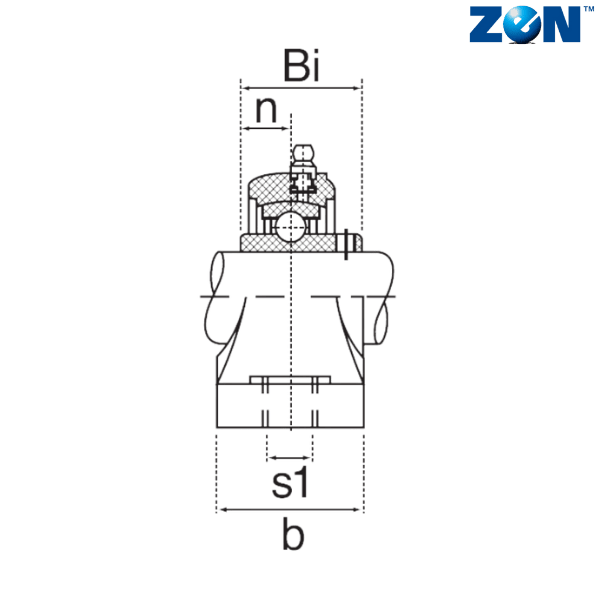

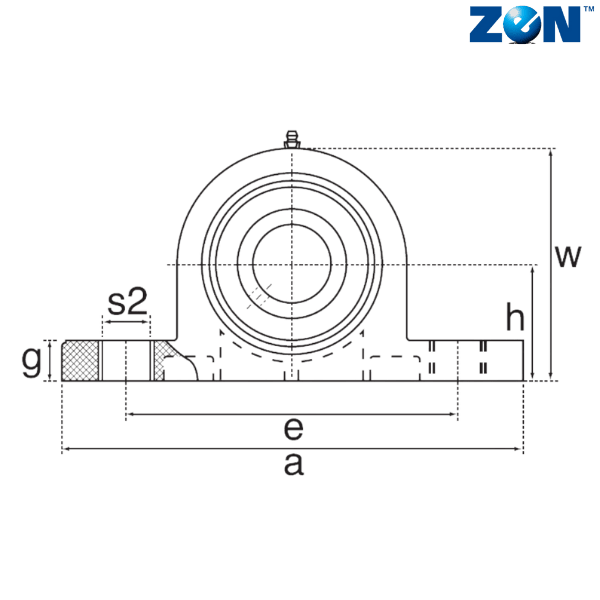

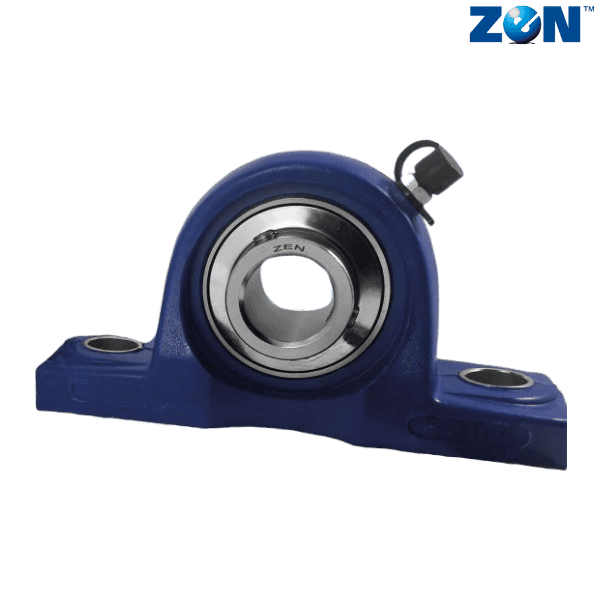

Description
Brand - ZEN
Item Number - SP212 ZEN
Category - Stainless Steel Pillow Blocks (SP)
Inner Diameter (d) mm - 60
Base to Center Height (h) mm - 69.8
Overall Length (a) mm - 241
Bolt Center to Center Length (e) mm - 184
b (mm) - 70
S1 (mm) - 20
S2 (mm) - 23
g (mm) - 25
Overall Height (w) mm - 138
Weight (kg) - 3.4
Bearing - SUC212
** Images are for representation purposes only
