Description
Brand - ZEN
Item Number - SP211 ZEN
Category - Stainless Steel Pillow Blocks (SP)

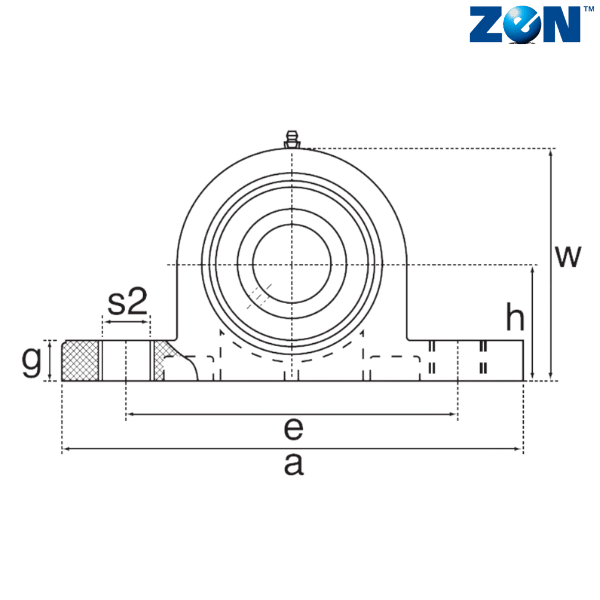

Inner Diameter (d) mm - 55
Base to Center Height (h) mm - 63.5
Overall Length (a) mm - 219
Bolt Center to Center Length (e) mm - 171

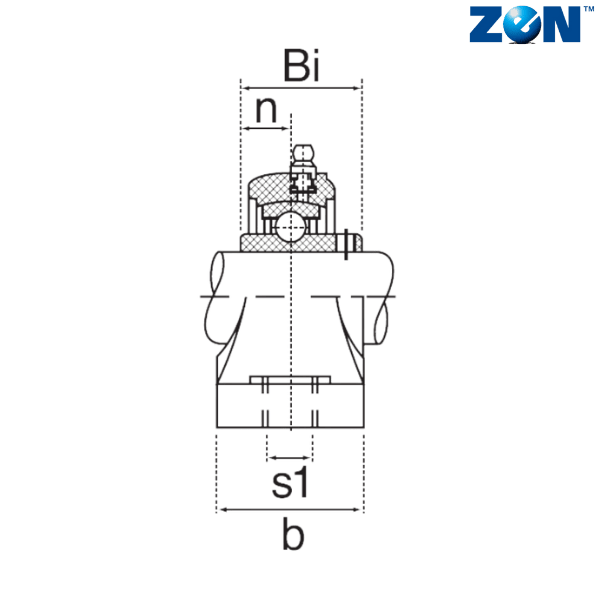

b (mm) - 60
S1 (mm) - 20
S2 (mm) - 23
g (mm) - 23
Overall Height (w) mm - 125
Weight (kg) - 2.55
Bearing - SUC211

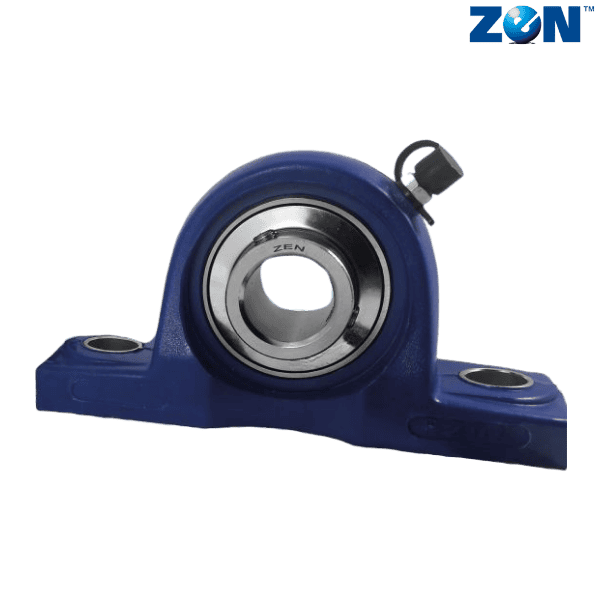

** Images are for representation purposes only
